Запчасти Case IH 125 (D-03) - SPREADER BOX SIDES, LEFT SIDE ILLUSTRATED

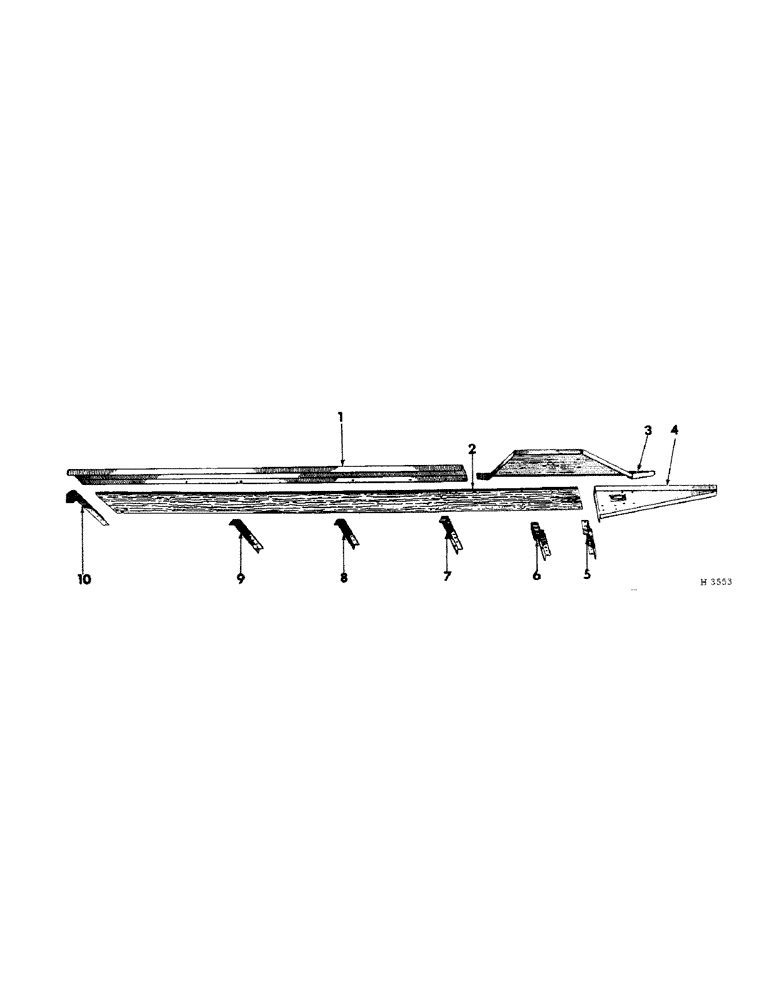

Схема запчастей Case IH 125 - (D-03) - SPREADER BOX SIDES, LEFT SIDE ILLUSTRATED

Артикул

Название

Примечание

Количество

1

619591R1

ROLL, side top LH

1шт.

1

619592R1

ROLL, side top RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

8шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

2шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

10шт.

15002R1

BOLT W/NUT, 5/16 x 1-1/4" crg (2-LH; 3-RH) Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

2шт.

Q399

WASHER

WASH., 11/32 x 1 x 16 ga

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (24-LH' 25-RH) 5/16"

1шт.

2

613719R1

BOARD, side LH

1шт.

2

619656R1

BOARD, side RH

1шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16" x 1-1/8" crg

30шт.

19577R1

BOLT

W/NUT, 5/16 x 1-1/8" cd-pltd crg

8шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

34шт.

3

619594R11

SHEET, top side LH

1шт.

3

619595R11

SHEET, top side RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

15002R1

BOLT W/NUT, 5/16 x 1-1/4" crg Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

613730R21

SHEET, rear side LH

1шт.

4

613731R21

SHEET, rear side RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach (RH)

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

W/NUT, 1/2 x 1" mach (1-LH; 2-RH)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (RH) 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (1-LH; 2-RH) 1/2"

1шт.

5

619618R1

ANGLE, side fifth LH

1шт.

5

613725R1

ANGLE, side fifth RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

612835R2

ANGLE, side fourth LH

1шт.

6

619647R1

ANGLE, side fourth RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

613720R2

ANGLE, side third LH

1шт.

7

613721R2

ANGLE, side third RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

619630R2

ANGLE, side second LH

1шт.

8

619631R2

ANGLE, side second RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

619628R2

ANGLE, side first LH

1шт.

9

619629R2

ANGLE, side first RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

619616R1

ANGLE, corner LH

1шт.

10

619617R1

ANGLE, corner RH

1шт.

623072R1

BOLT W/NUT, 1/2 x 1" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 61
