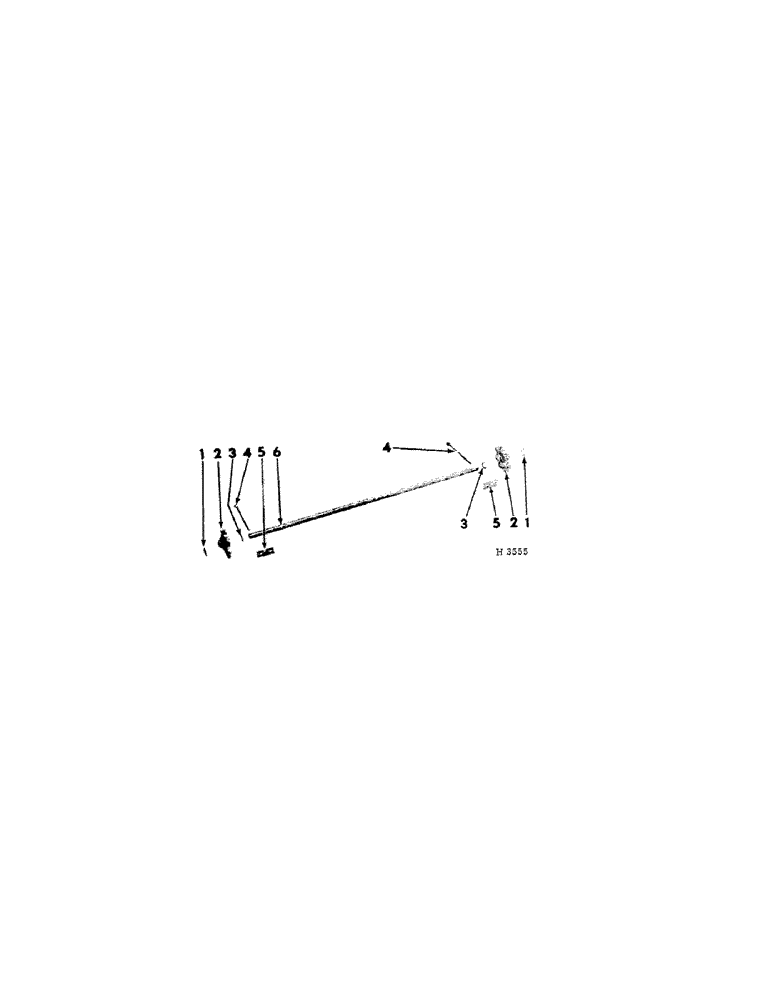

Запчасти Case IH 125 (D-03[A]) - FRONT APRON SHAFT

1

555273R1

WASHER, 1-1/32 x 2 x 11 ga

2шт.

2

612976R1

SPROCKET ASSY.

SPROCKET, 7T apron shaft

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

2шт.

3

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

2шт.

4

619685R1

BOLT

apron chain tightener

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16" cd-pltd

4шт.

5

619568R1

PLATE, front apron shaft

2шт.

17459R1

BOLT

W/NUT, 1/2 x 1-3/8" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

619546R1

SHAFT, front apron

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.
