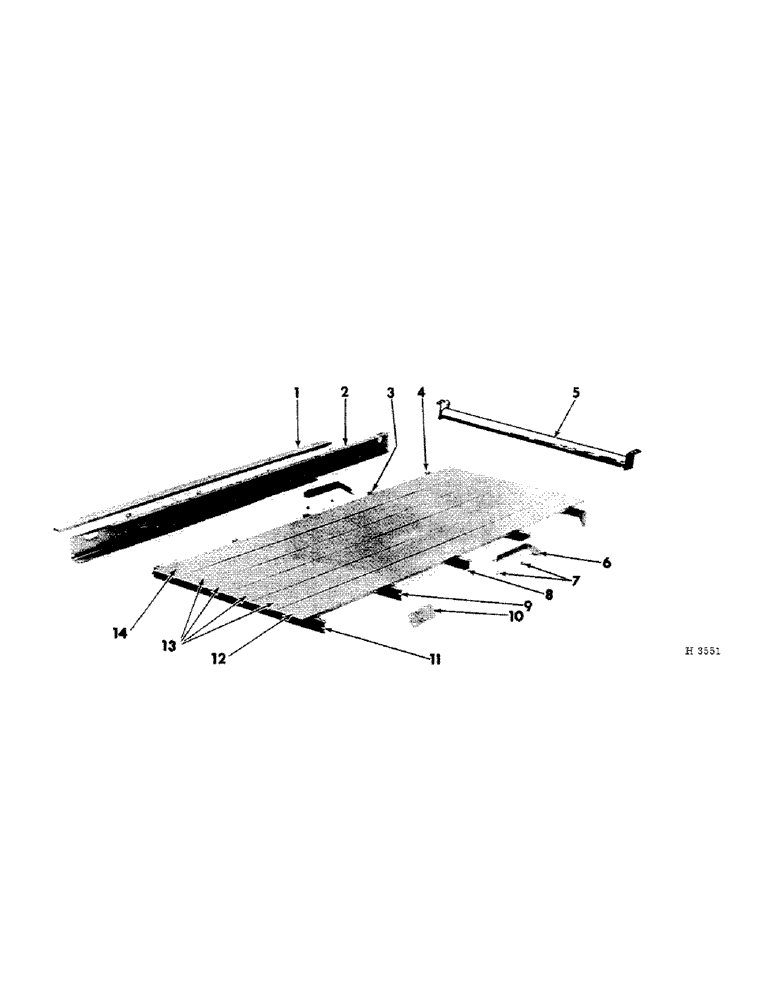

Запчасти Case IH 125 (D-02) - SPREADER BOX BOTTOM

1

619657R1

BOARD, outer LH

1шт.

1

619658R1

BOARD, outer RH

1шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT W/NUT, 5/16 x 1-1/2" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

2

619587R31

CHANNEL, bottom side LH

1шт.

2

619588R31

CHANNEL, bottom side RH

1шт.

3

619626R1

ANGLE, bottom support

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

619627R1

ANGLE, fifth support, Serial Range: (prior-1964)

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

609226R11

ANGLE, fifth support (1964 & since)

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 cd-pltd type 2

4шт.

231-1448

NUT,1/2"-13, GB

LK-NUT., 1/2" cd-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

611565R91

SUPPORT, bottom rear, Serial Range: (prior-1964)

1шт.

195968R1

BOLT W/NUT, 3/8 x 1-1/8" type 2 crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

ANGLE, apron raising LH & RH (prior to 1964 order 1-619675R1 (LH) or 1-619676R1 (RH) angle & 2-612714R1, spacers)

1шт.

6

619675R1

ANGLE, apron raising LH (1964 & since)

1шт.

6

619676R1

ANGLE, apron raising RH (1964 & since)

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

W/NUT, 3/8 x 1-1/2" no. 3 plow

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

612714R1

SPACER

raising angle (1964 & since)

1шт.

8

619625R1

ANGLE, third support

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

619624R1

ANGLE, second support

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

617493R2

GUIDE, apron chain

2шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

619623R1

ANGLE, first support

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

619659R1

BOARD, groove LH

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

13

619661R1

BOARD, tongue & groove

4шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

40шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

14

619660R1

BOARD, tongue RH

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.
