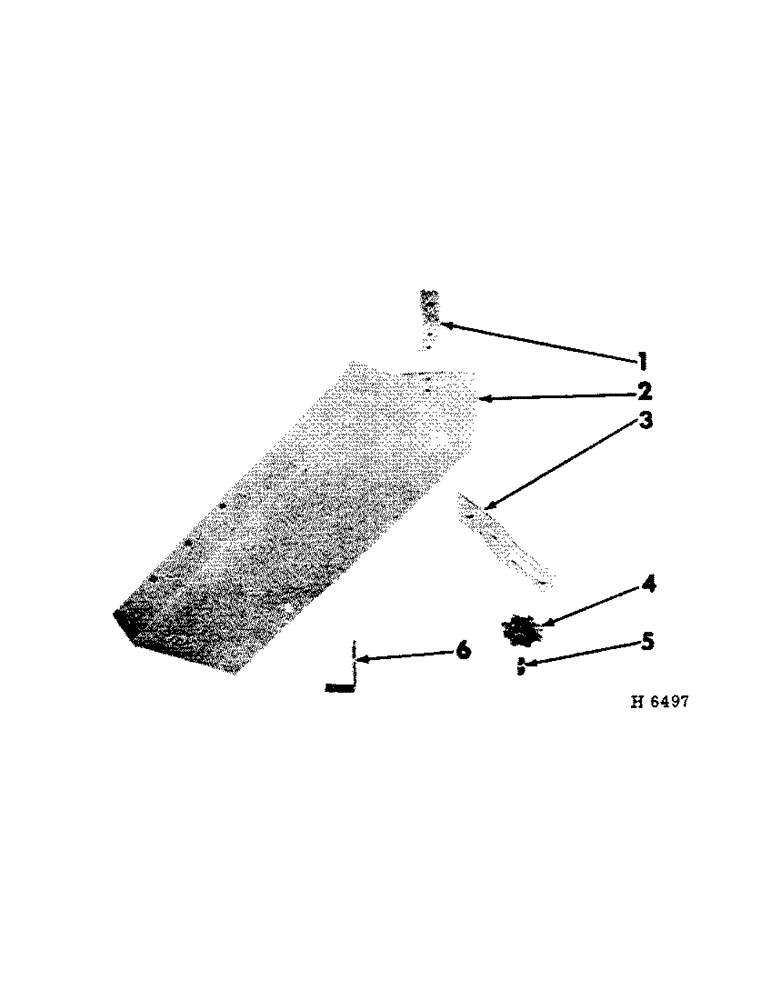

Запчасти Case IH 125 (D-19) - UPPER BEATER CHAIN SHIELD

1

619570R1

SUPPORT, shield upper

1шт.

19429R1

BOLT W/NUT, 5/16 x 7/8" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

612880R1

SHIELD, chain

1шт.

19282R1

BOLT

W/NUT, 1/4 x 1/2" cd-pltd crg

4шт.

19556R1

BOLT W/NUT, 1/4 x 5/8" cd-pltd mach

2шт.

19416R1

BOLT

W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

612776R1

ARM, chain tightener

1шт.

19480R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

616541R1

DRIVE SPROCKET

SPROCKET, 7T chain tightener

1шт.

271293

PULLEY

LUB-FTG, 5/16"

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

WASH, 25/32 x 1-1/2 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, sprocket tightener

1шт.

6

619572R1

SUPPORT, chain shield lower

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
