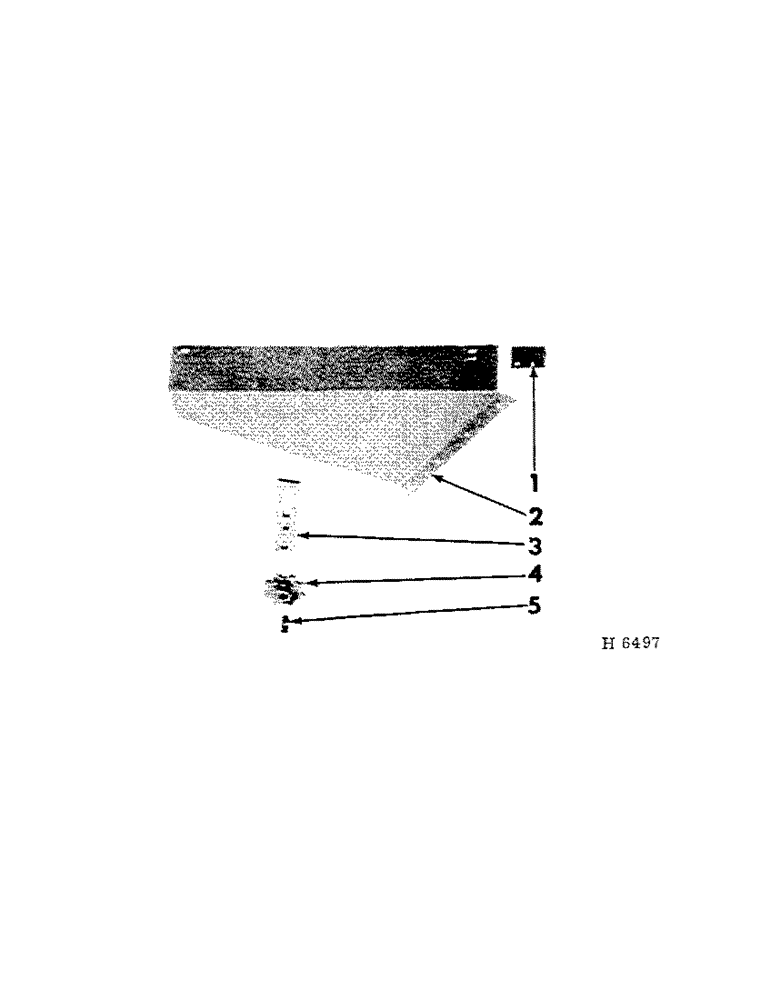

Запчасти Case IH 125 (D-19[A]) - WIDESPREAD CHAIN SHIELD

1

613743R1

BRACKET, chain shield

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT W/NUT, 1/4 x 5/8" cd-pltd crg

1шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

1шт.

Q392

WASHER

WASH, 9/32 x 3/4 x 18 ga

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

612879R1

SHIELD, widespread chain

1шт.

19282R1

BOLT

W/NUT, 1/4 x 1/2" cd-pltd crg

4шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT W/NUT, 1/4 x 5/8" cd-pltd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3

612778R1

ARM, chain tightener

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

616541R1

DRIVE SPROCKET

SPROCKET, 7T chain tightener

1шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FTG, 5/16"

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

14шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

WASH, 25/32 x 1-1/2 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, tightener sprocket

1шт.
