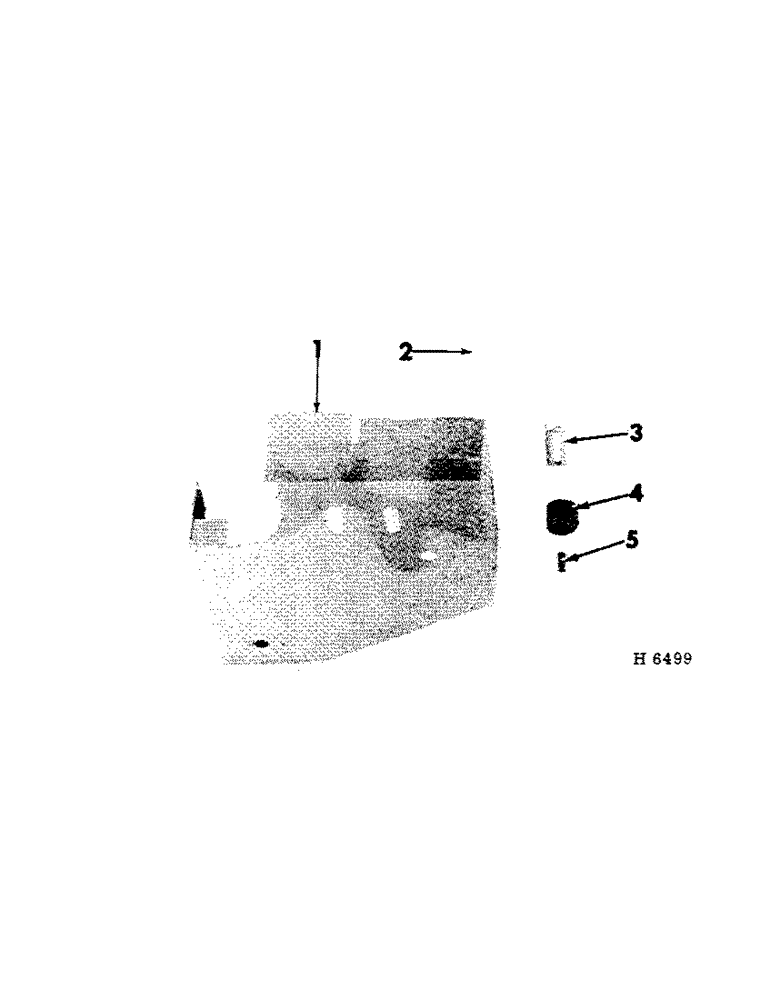

Запчасти Case IH 125 (D-18) - GEAR CASE SHIELD, USED 1961 - 1963 SEASON, AND PRODUCT GRAPHICS

1

613562R2

SHIELD, main drive

1шт.

613127R1

NUT, 5/16" - NF speed

2шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2" slt-rd-hd cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

613561R1

BRACKET, gear case shield

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

1шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

613740R1

SUPPORT, chain tightener

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

612859R1

ROLLER

chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, chain tightener roller

1шт.

614076R92

PACKAGE, product graphic service (composed of parts listed)

1шт.

1001422R2

DECAL

PRODUCT GRAPHIC, "I.H."

1шт.

1001424R2

PRODUCT GRAPHIC, "I.H."

2шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, "PTO operating speeds" (540 RPM)

1шт.

2750988R1

PRODUCT GRAPHIC, "McCormick International"

2шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, "warning & lubrication"

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, "be careful"

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, "lubrication"

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, "125" name

2шт.
