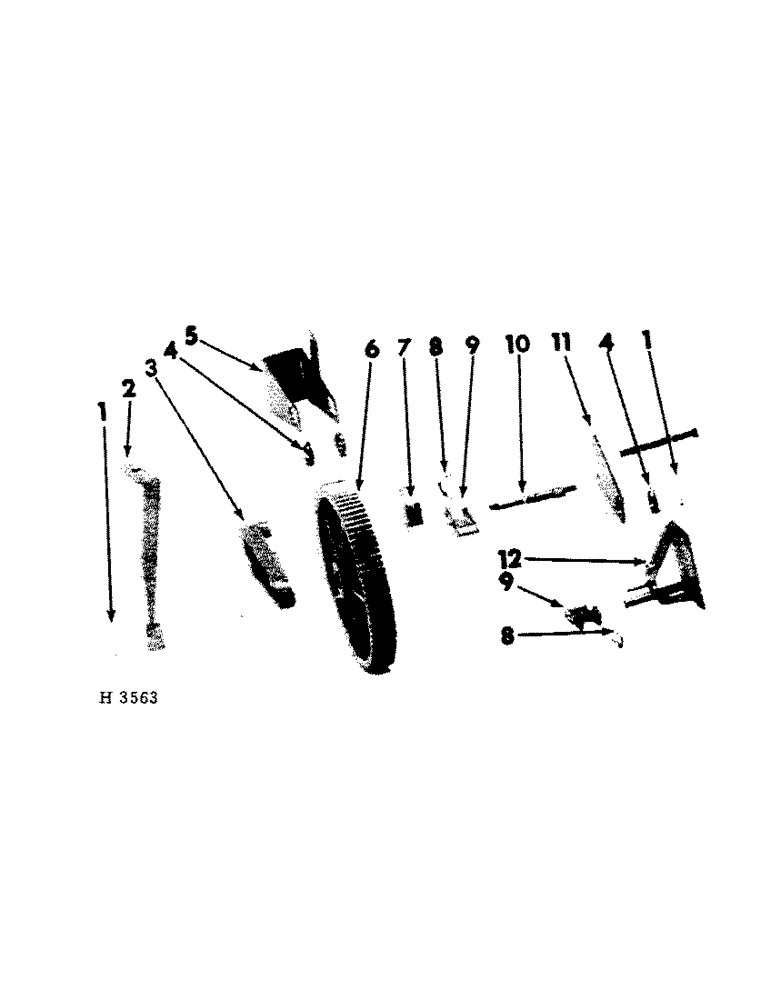

Запчасти Case IH 125 (D-16) - RATCHET WHEEL

1

Q121

WASHER

1-9/32 x 2 x 16 ga

1шт.

2

619308R11

SUPPORT, rear apron shaft

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

W/NUT, 1/2 x 1" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

617422R1

ARM, ratchet wheel

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

4

617419R1

BUSHING

control sector

3шт.

5

617651R91

SECTOR, feed control

1шт.

6

617415R1

WHEEL

90T ratchet

1шт.

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 1/4 x 2-1/2" straight

1шт.

7

617492R1

HOLDER, spring & pawl upper

1шт.

8

5291SA

SPRING

pawl

2шт.

9

617431R1

PAWL

ratchet

2шт.

10

617513R1

STUD, ratchet arm

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

617470R1

SUPPORT, rocker arm

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT W/NUT, 1/2 x 5-3/4" no. 3 plow

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

619699R91

HOLDER, spring & pawl lower

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
