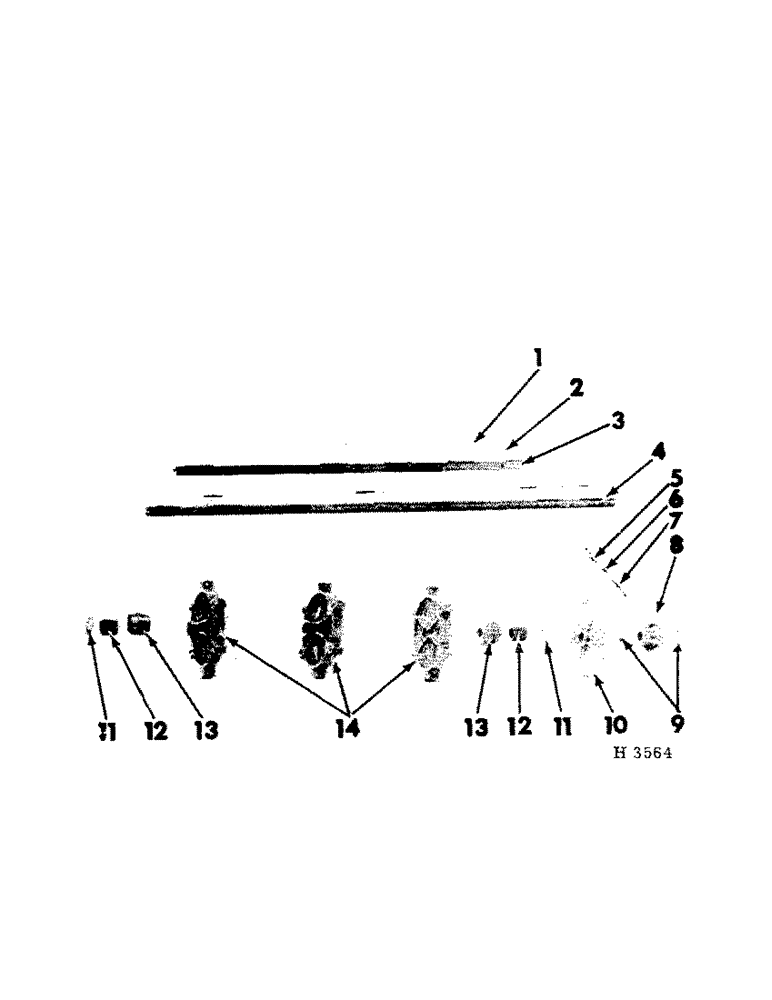

Запчасти Case IH 125 (D-14[A]) - LOWER BEATER

1

617506R1

TOOTH

beater double

30шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

60шт.

2

617507R1

TOOTH, beater single LH

2шт.

2

617508R1

TOOTH, beater single RH

2шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

4шт.

3

619686R91

ANGLE, no. 1 (includes 106915 rivets, & 617506R1 & 617508R1 teeth)

1шт.

3

619687R91

ANGLE, no. 2 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

619688R91

ANGLE, no. 3 (includes 106915 rivets, & 617507R1 teeth)

1шт.

3

619689R91

ANGLE, no. 4 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

619690R91

ANGLE, no. 5 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

619691R91

ANGLE, no. 6 (includes 106915 rivets, & 617506 & 617507R1 teeth)

1шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

W/NUT, 3/8 x 1-7/8" cd-pltd type 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

4

611492R1

SHAFT, lower beater

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

5

456980R91

CHAIN LINK

LINK, upper beater chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

6

456929R91

CHAIN LINK

LINK, upper beater chain offset

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

7

CHAIN, upper beater drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft chain, reduce to 45 links, add 2-456929R91, offset links & 1-456980R91, connecting link)

1шт.

8

617405R2

SPROCKET ASSY.

SPROCKET, 14T upper beater drive

1шт.

619719R1

KEY, 5/16 x 5/16 x 2-1/8" straight 5/16" Sq x 2 1/8", Par

1шт.

9

Q121

WASHER

1-9/32 x 2 x 16 ga

1шт.

10

617407R2

SPROCKET ASSY.

SPROCKET, 23T widespread drive

1шт.

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 5/16 x 1-5/8" straight

1шт.

11

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, 1-9/32 x 2-1/4 x 16 ga

1шт.

12

619671R91

ROLLER BEARING,31.75mm ID x 47.63mm OD x 50.8mm W

shaft (opt w/609048R91)

1шт.

12

609048R91

BEARING

shaft (opt w/619671R91)

1шт.

13

619542R1

CAGE

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

14

619543R1

BRACKET, beater shaft

3шт.

616509R1

KEY, 5/16 x 5/16 x 2-5/8" straight

3шт.

19479R1

PIN,1/4" x 2", Coiled

(RH) 1/4" x 2", Coiled

1шт.
