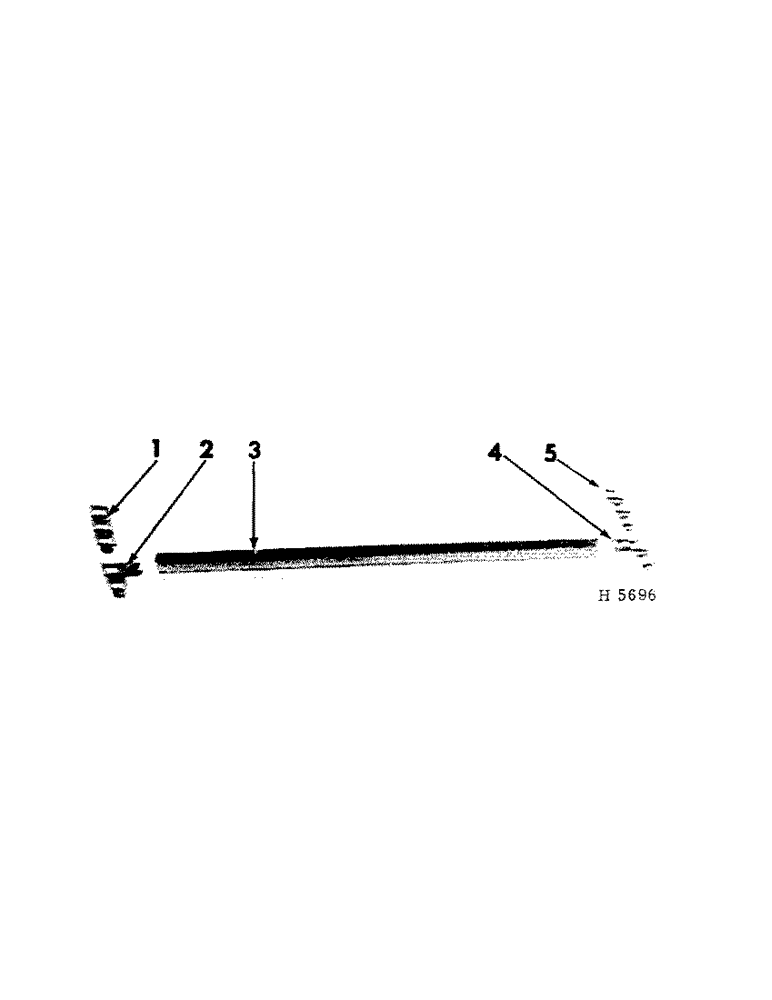

Запчасти Case IH 125 (D-13[A]) - APRON CHAIN

606419R91

CHAIN, apron (consists of parts listed)

1шт.

1

CHAIN, apron RH (order 2-CS-67XH 10 ft chains, & when using 15-613787R11, attaching links reduce 75 links. However, if using 15-609279R1 attaching links, reduce to 90 links)

1шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching LH (opt w/609279R1, link)

15шт.

2

609279R1

LINK, chain attaching LH (opt w/613787R11, link)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

3

606422R91

MEMBER

CROSSMEMBER, apron (includes links, 613788R11 & 613788R11 & rivets, 106915) (opt w/609281R91, crossmember)

1шт.

3

609281R91

CROSSMEMBER, apron (includes links, 609279R1 & 609280R1 & rivets, 106915) (opt w/606422R91 crossmember)

1шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching RH (opt w/609280R1 link)

1шт.

4

609280R1

LINK, chain attaching RH (opt w/613788R11, link)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

5

CHAIN, apron LH (order 2-CS-67XH, 10 ft chains & when using 15-613788R11 attaching links, reduce to 75 links. However, if using 15-609280R1 attaching links, reduce to 90 links)

1шт.
