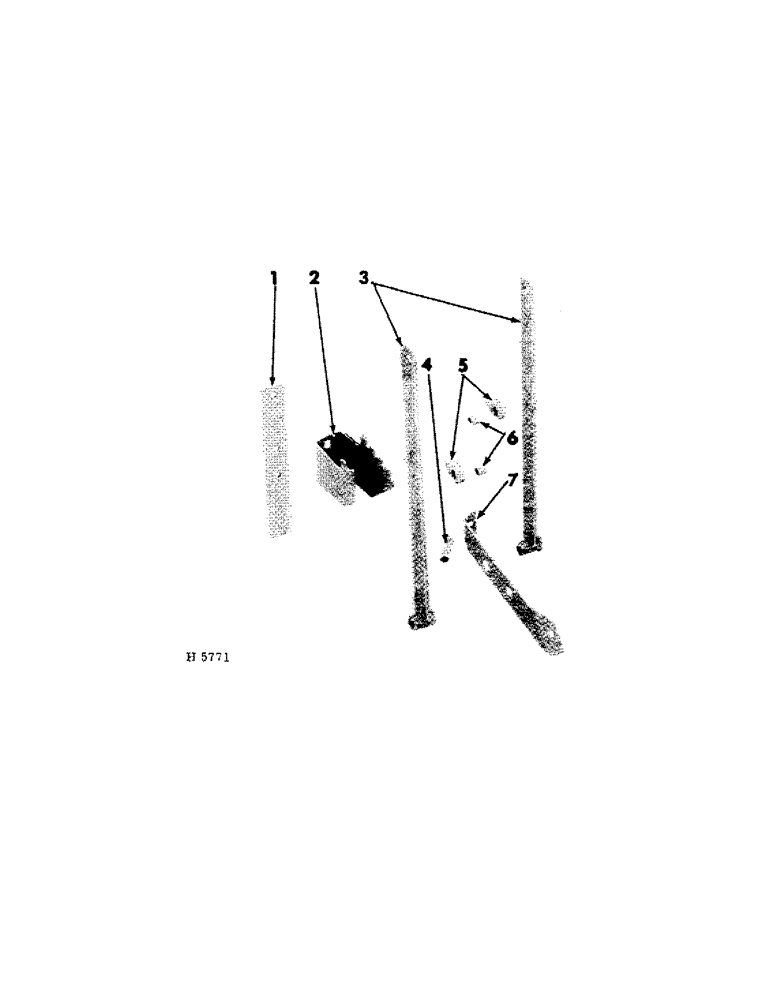

Запчасти Case IH 125 (D-12) - ROPE CONTROL TRIP LEVERS

1

613748R1

PLATE, sector support

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

612808R1

SECTOR, trip rope

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

2шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

612785R21

LEVER, rope trip

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

4

4A

SPRING

trip lever

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

612721R2

PAWL, trip

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

W/NUT, 1/2 x 1-3/4" mach

2шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

2шт.

Q169

WASH., 25/32 x 1-1/4 x 18 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

519628R1

SPACER

BUSHING, trip pawl

2шт.

7

913749R1

SUPPORT, adjusting rod and sector

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

ROPE, 3/8" x 21 ft sisal (dealer to supply from bulk stock)

1шт.
