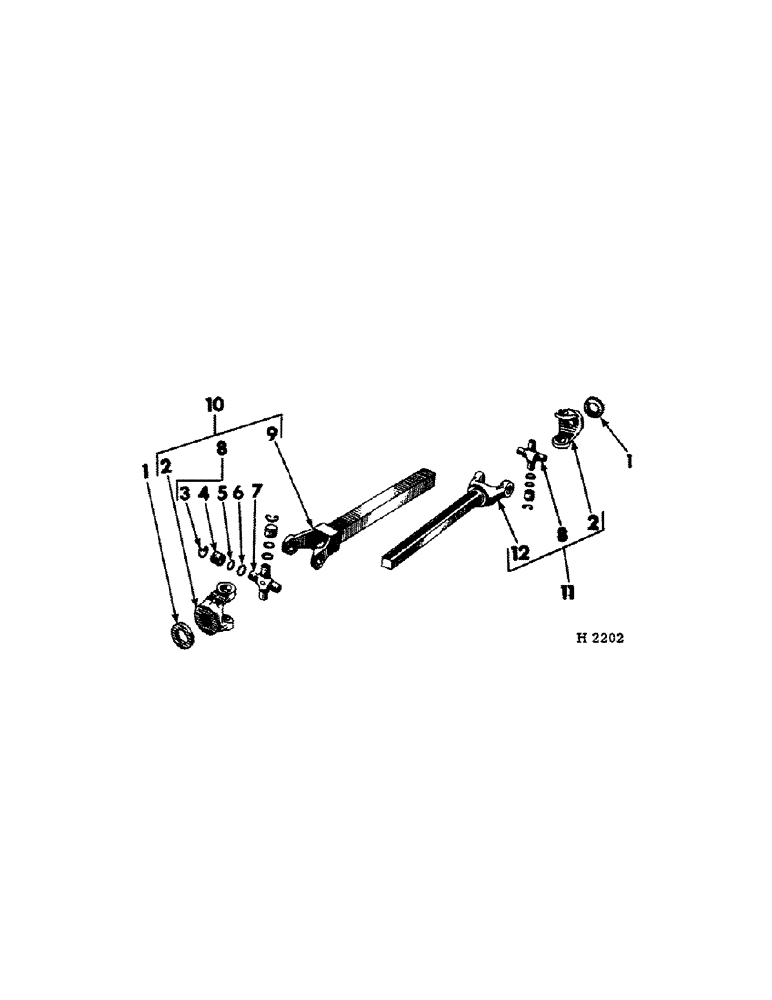

Запчасти Case IH 125 (D-10) - SIDE DRIVE SHAFT UNIVERSAL, ROCKWELL, STANDARD

1

B12219

WASHER

drive shaft knuckle

2шт.

2

452966R2

YOKE, 1" LH threaded

2шт.

3

454741R1

RING, centre cross snap

8шт.

4

450776R1

CAP

BUSHING, centre cross

8шт.

5

450778R1

WASHER

centre cross cork

8шт.

6

450779R1

RETAINER

centre cross cork wash

8шт.

7

CROSS, centre (order 1-454740R91) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

2шт.

8

454740R91

CROSS

centre (parts in bracket)

2шт.

9

619680R91

YOKE & TUBE, front

1шт.

10

619678R91

JOINT, front (parts in bracket)

1шт.

11

619679R91

JOINT, rear (parts in bracket)

1шт.

12

6196801R91

YOKE & SHAFT, rear

1шт.
