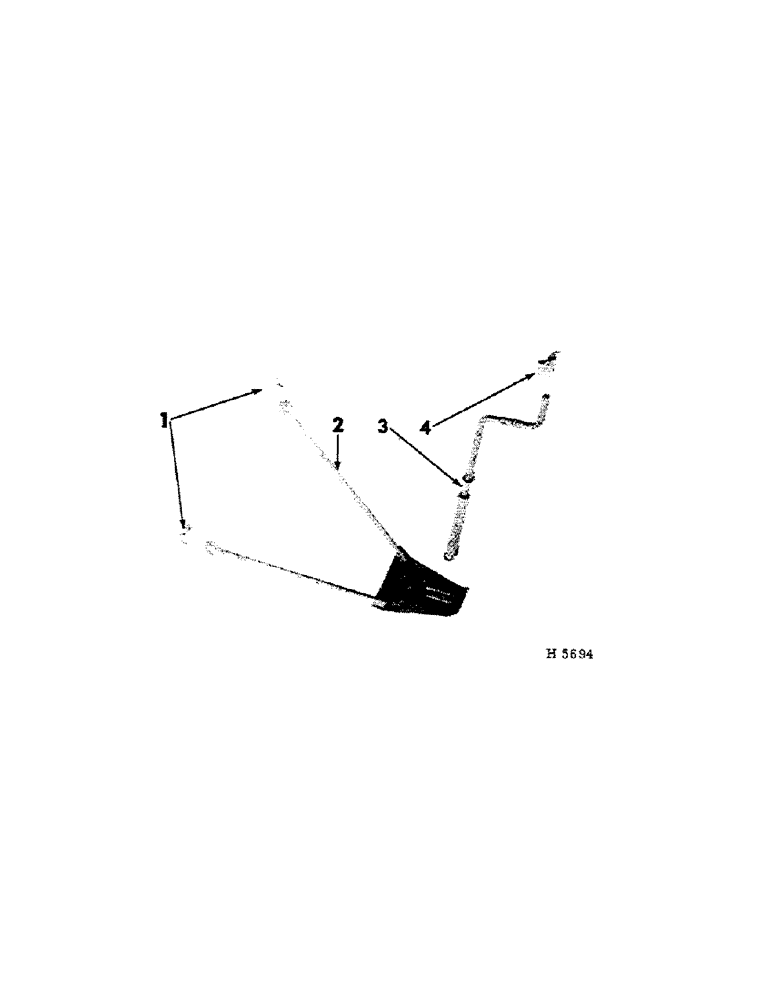

Запчасти Case IH 125 (D-10[A]) - HITCH STAND

1

619705R1

ANGLE, stand pivot

2шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

619707R91

STAND, tractor hitch

1шт.

619706R1

PIN, stand hold-up

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.

3

619713R92

SLEEVE, lifting screw

1шт.

126098

FITTING

LUB-FTG, 5/16"

1шт.

PO20130

AXLE PIN,3/4" x 2 1/8"

PIN, 3/4 x 2-1/8" std-hd dld

1шт.

Q3501

WASHER

WASH., 25/32 x 1-1/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

613130R1

CLIP, stand screw sleeve

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
