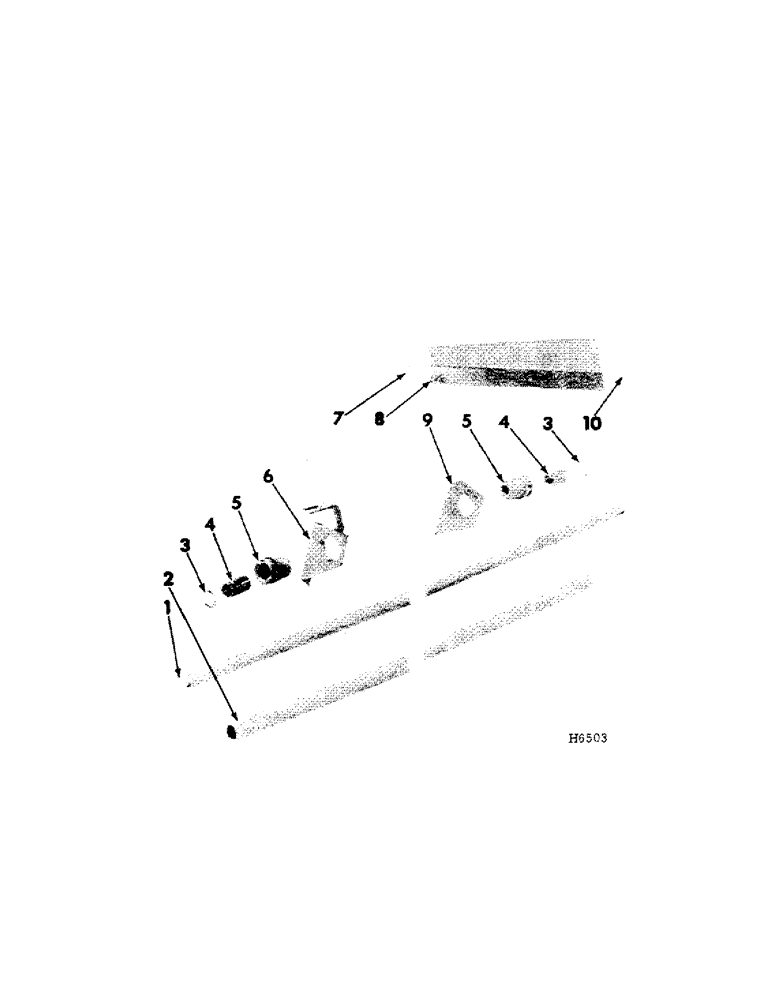

Запчасти Case IH 125 (D-09[B]) - SIDE DRIVE SHAFT

1

613738R1

SHAFT, side drive

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

619663R1

SHIELD, drive shaft

1шт.

3

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

4

619670R91

NEEDLE BEARING

BEARING, shaft (opt w/609047R91)

2шт.

4

609047R91

BEARING

shaft (opt w/619670R91)

1шт.

5

619539R1

CAGE

HOUSING, drive shaft brg

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8" - 30 degree elbow (rear)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow (front)

1шт.

6

613831R91

SUPPORT, front brg housing

1шт.

19283R1

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

W/NUT, 3/8 x 1-3/4" cd-pltd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

619649R1

SUPPORT, universal shield front

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

619598R1

SHIELD, side drive shaft universal

1шт.

19428R1

BOLT W/NUT, 5/16" cd-pltd crg

2шт.

619855R1

WASHER

WASH., 11/32 x 3/4 x 16 ga cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

619574R1

SUPPORT, rear brg housing

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

2шт.

80681

LOCK WASHER,5/16"

3/8"

2шт.

10

617630R1

SUPPORT, universal shield rear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
