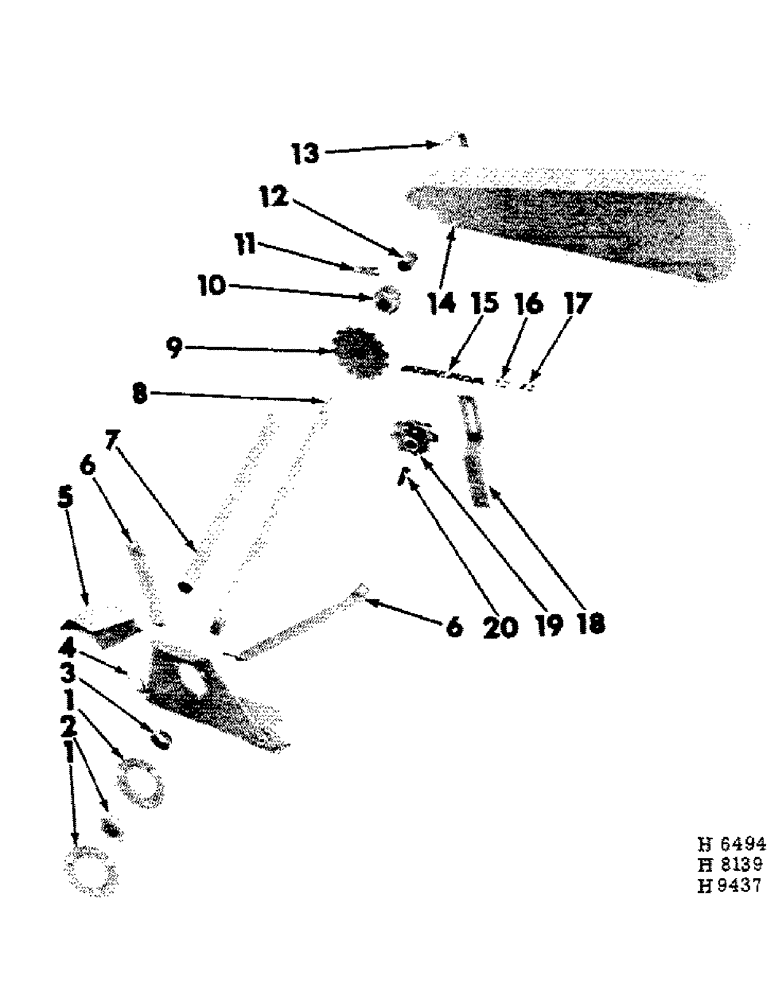

Запчасти Case IH 125 (D-08) - FRONT DRIVE SHAFT

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, shaft brg

2шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

455960R91

BALL BEARING

BEARING, front (Fafnir or New Departure, use w/557115R11, collar)

1шт.

2

610536R91

BEARING

front (S K F use w/610537R11 collar)

1шт.

3

557115R11

COLLAR

COLLAR, brg locking (includes screw, 115321) (Fafnir or New Departure, use w/455960R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

3

610537R11

COLLAR

brg locking (includes screw, 115321) (S K F use with 610536R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16" hdls cup-pt set

1шт.

4

613746R91

SUPPORT, front brg

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

607993R1

SHIELD

COVER, PTO shield

1шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

618259R1

STRAP, brg support LH

1шт.

6

618260R1

STRAP, brg support RH

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

619664R1

SHIELD, drive shaft

1шт.

8

619552R1

SHAFT, front drive

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

657196

PIN, 1/4 x 2" slt-spg

2шт.

9

617416R1

SPROCKET, 14T drive shaft (540 RPM)

1шт.

9

613315R1

SPROCKET, 18T drive shaft (1000 RPM)

1шт.

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1/4 x 1-1/2" straight

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

10

619541R1

CASE

HOUSING, rear brg

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

1шт.

11

619603R1

PLATE

brg housing stop

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

NUT, 3/8 x1" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

619669R91

BEARING ASSY,1.125" ID x 1.503" OD x 2"

rear (opt w/609046R91)

1шт.

12

609046R91

BEARING

LUB-FTG, rear (opt w/619669R91)

1шт.

13

608104R1

SUPPORT, chain shield lower

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1 mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

613801R92

SHIELD

drive chain

1шт.

19429R1

BOLT, 5/16 x 7/8" cd-pltd crg

2шт.

619855R1

WASHER

WASH., 11/32 x 3/4 x 16 ga cd-pltd

2шт.

7500032

BUSHING

NUT, 5/16" cd-pltd wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

CHAIN, drive (1-1/4" extended pitch agriculture) (order 1-569089R91, 10 ft chain, reduce to 67 links, add 1-456929R91, offset link & 1-456980R91, connecting link)

1шт.

16

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

17

456929R91

CHAIN LINK

LINK, drive chain offset

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

18

613741R1

ARM, chain tightener

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

ROLLER, chain tightener (prior to 1964 order 1-616541R1, sprocket & 2-615168R1, wash)

1шт.

19

616541R1

DRIVE SPROCKET

SPROCKET, chain tightener (1964 & since)

1шт.

271293R1

LUB-FTG, 5/16"

1шт.

615168R1

WASHER

WASH., 25/32 x 1-1/2 x 11 ga

2шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH., 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20

612794R1

SPACER

BUSHING, chain tightener sprocket

1шт.
