Запчасти Case IH 125 (D-07) - FRONT UNIVERSAL, 540 RPM, HAYES STEEL

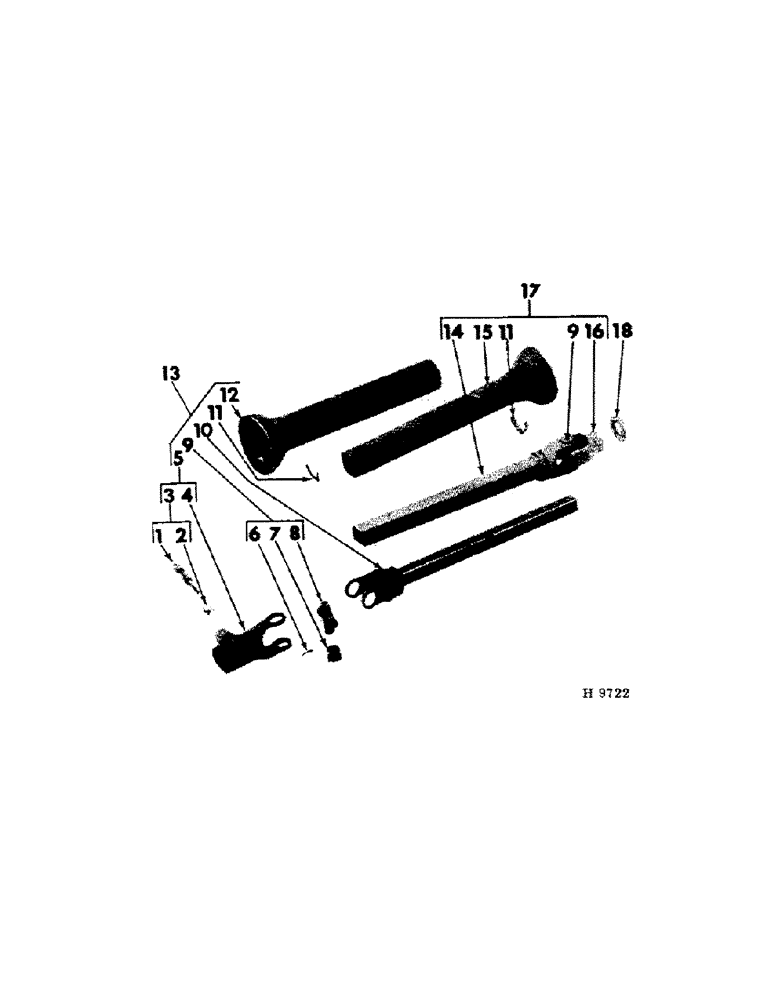

Схема запчастей Case IH 125 - (D-07) - FRONT UNIVERSAL, 540 RPM, HAYES STEEL

Артикул

Название

Примечание

Количество

1

PIN, yoke lock (order 1-613867R11) (NSS)

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

2

613868R1

SPRING

yoke lock pin

1шт.

3

613867R11

PIN

yoke lock (includes pin, 17078R1 & spring, 613868R1)

1шт.

4

YOKE, front (order 1-613866R91)

8шт.

5

613866R91

YOKE, quick-detachable (includes pin, 613867R11)

1шт.

6

613469R1

RING

centre cross snap

8шт.

7

613470R11

BEARING, centre cross

8шт.

8

CROSS, centre (order 1-613471R91) (NSS)

2шт.

19769R1

LUB-FTG, 1/4" 65 degree elbow

1шт.

9

613471R91

SPIDER ASSY.

CROSS, centre (parts in bracket)

2шт.

10

614000R92

YOKE & SHAFT, front

1шт.

11

613870R1

BEARING HALF

BEARING, shield nylon

4шт.

12

6140002R92

SHIELD, front outer

1шт.

13

614009R92

JOINT

front (parts in bracket)

1шт.

14

614001R91

YOKE & TUBE, rear

1шт.

15

614003R91

SHIELD, rear inner

1шт.

16

613466R1

YOKE

threaded rear

1шт.

17

614010R91

JOINT,16.75, 2.5" Length

rear (parts in bracket)

1шт.

18

B12219

WASHER

knuckle rear

1шт.

Выбрано товаров: 20
