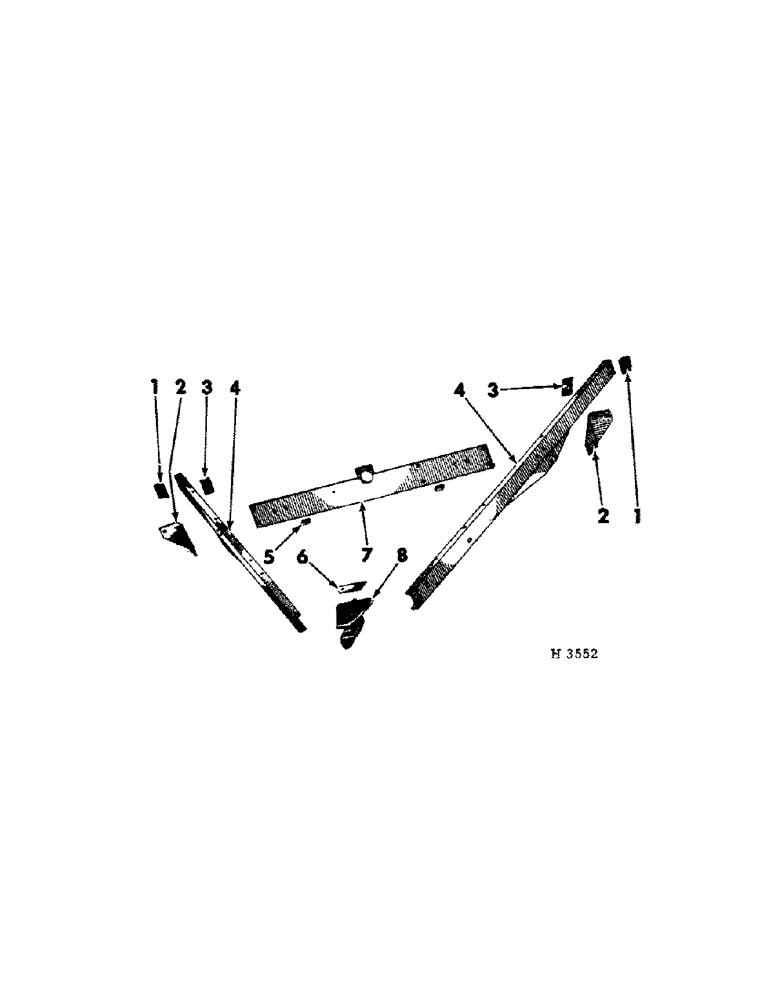

Запчасти Case IH 125 (D-06) - TRACTOR HITCH

1

619565R1

BRACKET, hitch channel end

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

619563R1

BRACKET, channel support LH

1шт.

2

619564R1

BRACKET, channel suport RH

1шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

617510R1

PLATE, apron raising

2шт.

15557R1

PLOW BOLT,#3 Hd, 3/8" - 16 x 1 1/8", Gr 2

BOLT, PLOW, 3/8"-16 x 1 1/8", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

4шт.

4

619652R11

CHANNEL, hitch LH

1шт.

4

619653R11

CHANNEL, hitch RH

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

W/NUT, 1/2 x 1" mach

4шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

4шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

5

N32261

SPACER, hitch channel

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

W/NUT, 1/2 x 1-1/2" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

619585R1

PLATE, upper draw

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

613734R21

ANGLE, front cross

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

617423R3

BRACKET, hitch

1шт.

17486R1

BOLT

W/NUT, 1/2 x 1-5/8" mach

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT W/NUT, 1/2 x 1-3/4" crg

2шт.

E23193

PIN, 3/4 x 4-11/16" std-hd dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
