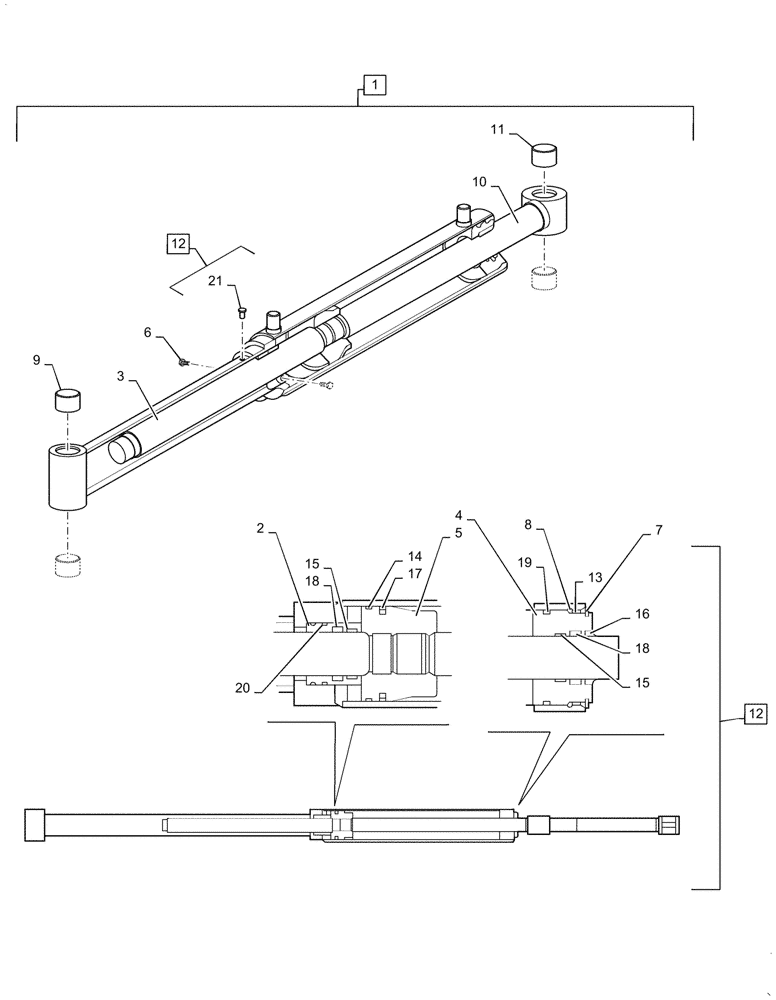

Запчасти Case IH LX780 (35.723.110) - BUCKET LIFT CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12713010

CYLINDER,Double Acting, 40mm Rod, 460mm Stroke

Bucket Lift, Incl 2 - 11, 13 - 21

1шт.

2

LDR12700017

GUIDE

Cylinder

1шт.

3

LDR12700915

ROD

Rear

1шт.

4

LDR12709011

BEARING

Hydraulic Cylinder

1шт.

5

LDR12709012

PISTON

Lift Cylinder

1шт.

6

LDR5005983

SCREW

Stop, M6 x 16mm L

2шт.

7

LDR5016619

RING

Retaining

1шт.

8

LDR5016666

RING

Retaining

1шт.

9

LDR5018514

BUSHING,35mm L

2шт.

10

LDR12713023

PISTON

Rod

1шт.

11

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

12

LDR5033716

SEAL PACKAGE

Services 1, Contains 10 Seals, 1 Plug, Incl 13 - 21

1шт.

13

NSS

NOT SOLD SEPARAT

O - Ring, 82.14mm OD x 3.53mm Thk, Incl in 1, 12

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 85mm ID x 90mm OD x 5.5mm Thk, Incl in 1, 12

1шт.

15

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 12

2шт.

16

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 12

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal, 74.5mm ID x 90mm OD x 6.3mm Thk, Incl in 1, 12

1шт.

18

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm ID x 10mm Thk, Incl in 1, 12

2шт.

19

NSS

NOT SOLD SEPARAT

Cover Seal, 83mm ID x 90mm OD x 6.5mm Thk, Incl in 1, 12

1шт.

20

NSS

NOT SOLD SEPARAT

Cover Seal, 53.4mm ID x 58mm OD x 4.1mm Thk, Incl in 1, 12

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 12

1шт.
