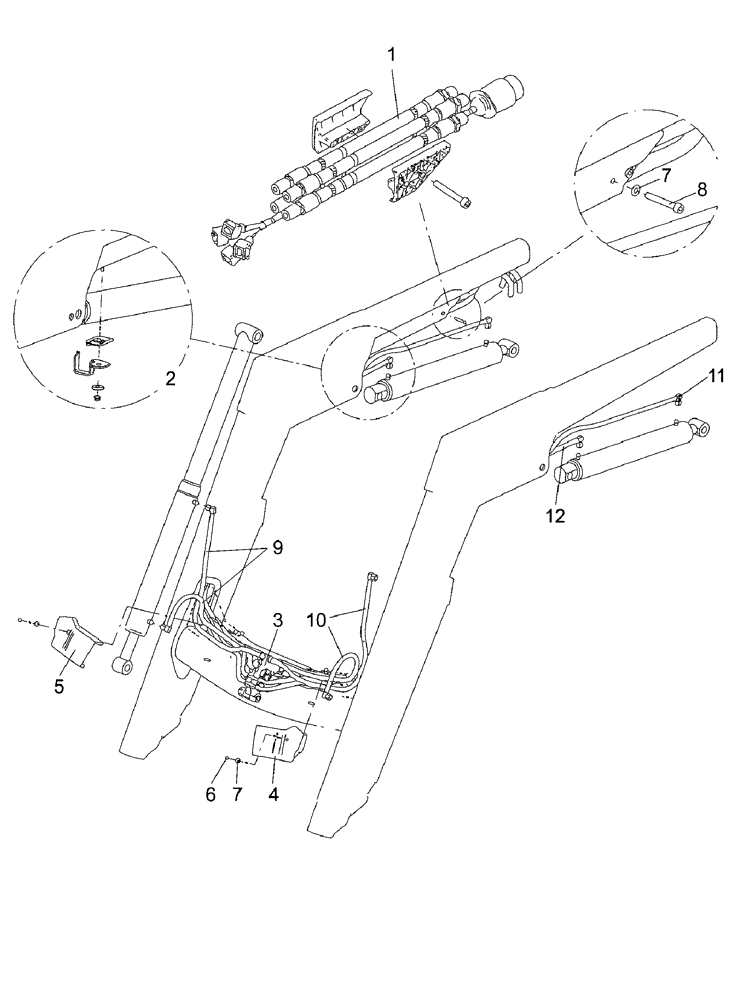

Запчасти Case IH LX760 (35.100.AR[10]) - LOADER ARM HYDRAULICS - NSL (35) - HYDRAULIC SYSTEMS

1

LDR9031314

HOSE KIT

1шт.

See Figure 08-04

1шт.

2

LDR5215167

CLAMP

1шт.

3

LDR10550258

BLOCK VALVE FOR REMO

1шт.

4

LDR5215061

HOSE CLAMP

1шт.

5

LDR5215062

HOSE CLAMP

1шт.

6

LDR5011910

NUT

2шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

8

LDR5005128

SCREW

1шт.

9

LDR9031245

FLEXIBLE HOSE

2шт.

10

LDR9031248

FLEXIBLE HOSE

2шт.

11

LDR9031234

FLEXIBLE HOSE

2шт.

12

LDR9031224

FLEXIBLE HOSE

2шт.
