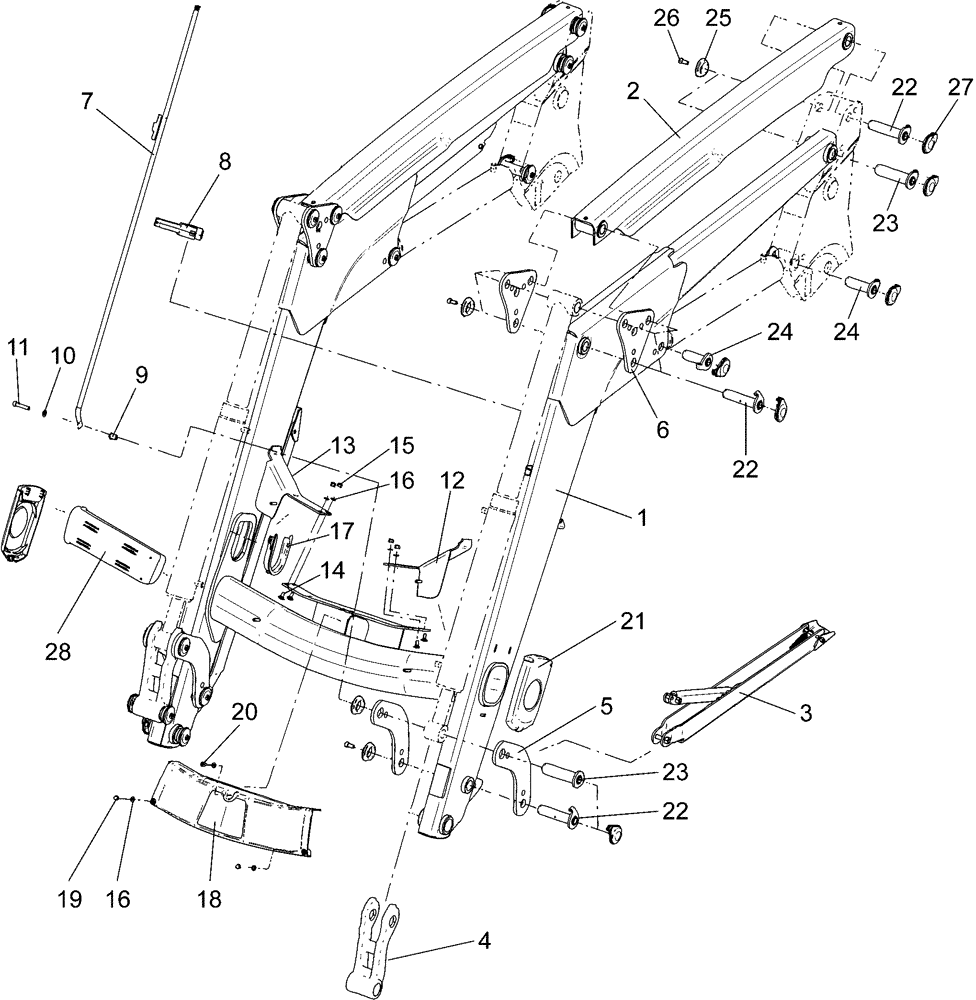

Запчасти Case IH LX760 (39.100.AB[09]) - LOADER ARM FRAME - MSL (39) - FRAMES AND BALLASTING

1

LDR5211764C

BEAM

1шт.

2

LDR5213534C

ROD

2шт.

3

LDR5218005C

STAND

2шт.

4

LDR5214832C

LINKAGE YOKE

2шт.

5

LDR5214112C

LINK

4шт.

6

LDR5214122C

LINK

4шт.

7

LDR5215217

ROD

1шт.

8

LDR5215208C

HOLDER

1шт.

9

LDR5215227C

SPACER

1шт.

10

LDR5013110C

WASHER

1шт.

11

LDR5004920C

SCREW

1шт.

12

LDR5211255C

BRACKET

1шт.

13

LDR5211256C

BRACKET

1шт.

14

LDR5006001

SCREW

4шт.

15

LDR5011553

NUT,M8

4шт.

16

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

7шт.

17

LDR5215101C

COVER

2шт.

18

LDR5215021

VALVE COVER

1шт.

19

LDR5011910

NUT

2шт.

20

LDR5002058

SCREW

1шт.

21

LDR5215142

COVER

2шт.

22

LDR9020035

PIVOT PIN,35mm OD x 127mm L

10шт.

23

LDR9020036

PIVOT PIN,40mm OD x 127mm L

5" Length

4шт.

23

LDR9020061

PIVOT PIN,147mm x 40mm OD

5-3/4" Length

4шт.

24

LDR9020038

PIVOT PIN,35.14mm OD x 106.42mm L

4шт.

25

LDR5215131

CAP,Locking Cover

18шт.

26

LDR5004917

SCREW,MC6S

18шт.

27

LDR5215121

CAP COVER

18шт.

28

LDR5215182

BOX

1шт.
