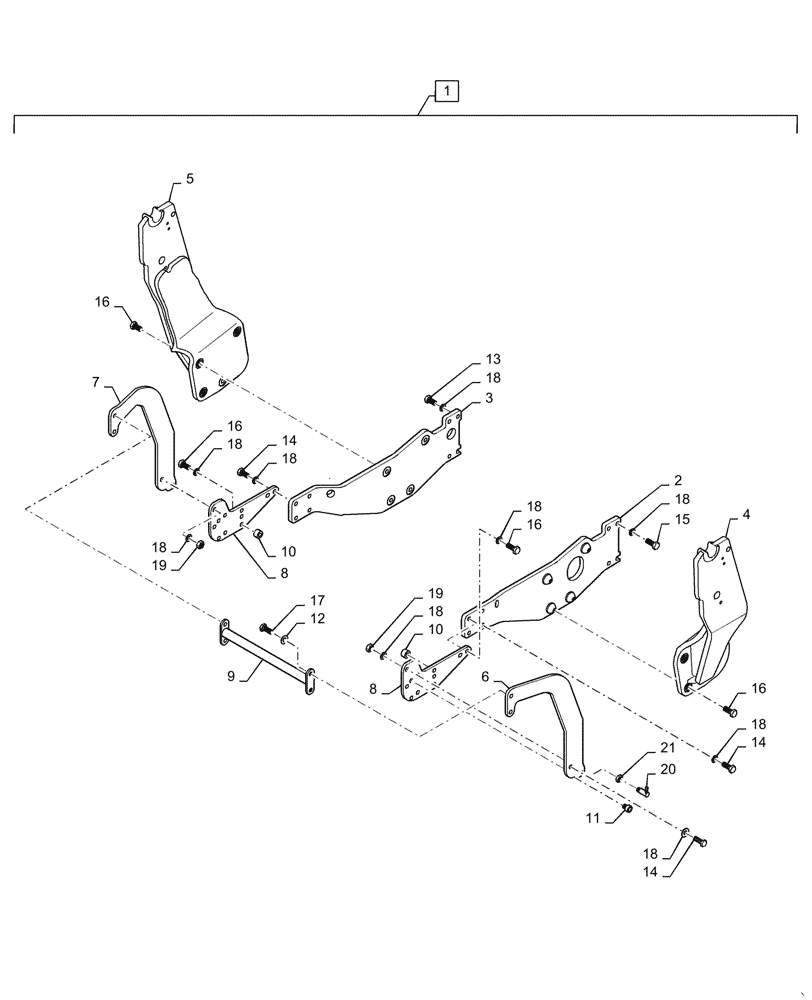

Запчасти Case IH LX760 (39.100.270) - VAR - 730783006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 19, Order Through Wholegoods 730783006

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

6

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

7

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

8

LDR10411695

BRACKET, SUPPORTING

Grille Guard

2шт.

9

LDR10411696

BAR

Cross Member

1шт.

10

LDR1109053

SPACER

Sleeve, 25mm Thk

4шт.

11

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

12

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

13

LDR5002934

SCREW

M20 x 55mm L, Cl 8.8

2шт.

14

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

8шт.

15

LDR5002958

SCREW

M20 x 65mm L, Cl 10.9

6шт.

16

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

18шт.

17

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

18

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

24шт.

19

LDR5011559

LOCK NUT,M20

2шт.

20

LDR5016994

PIN

Locking

2шт.

21

LDR5011922

NUT

2шт.
