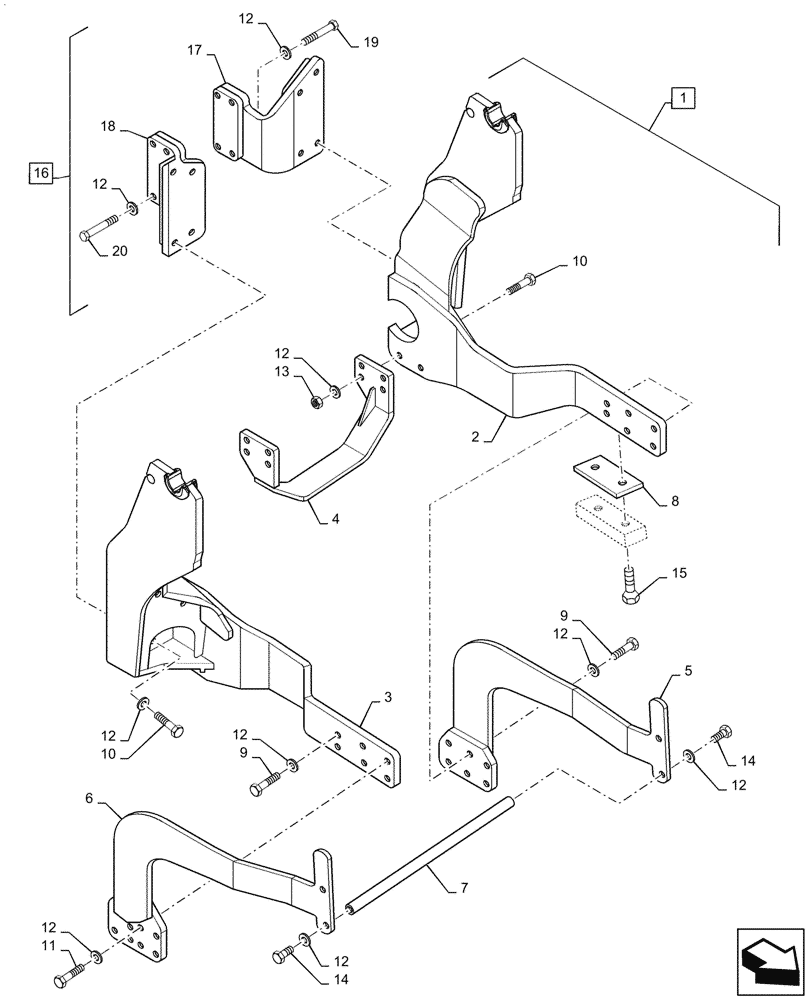

Запчасти Case IH LX760 (39.100.220) - VAR - 715451116, 716170006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 15, Order Through Wholegoods 715451116

1шт.

Compatible Tractors - Puma 165/180

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10386688

CROSSBAR

Support

1шт.

5

LDR10391805

GUARD

Grille, LH

1шт.

6

LDR10391806

GUARD

Grille, RH

1шт.

7

LDR10391809

CROSSBAR

Tie Rod

1шт.

8

LDR10356810

PLATE

Spacer

2шт.

9

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

4шт.

11

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

8шт.

10

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

12шт.

12

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

34шт.

13

LDR5011559

LOCK NUT,M20

4шт.

14

LDR5002209

SCREW

M20 x 45mm L

2шт.

16

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 12, 17 - 20, Order Through Wholegoods 716170006

1шт.

Compatible Tractors - Puma 165/180

1шт.

15

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.

17

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 16

1шт.

19

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

4шт.

20

LDR5002222

BOLT

M20 x 100mm L, Cl 10.9

4шт.
