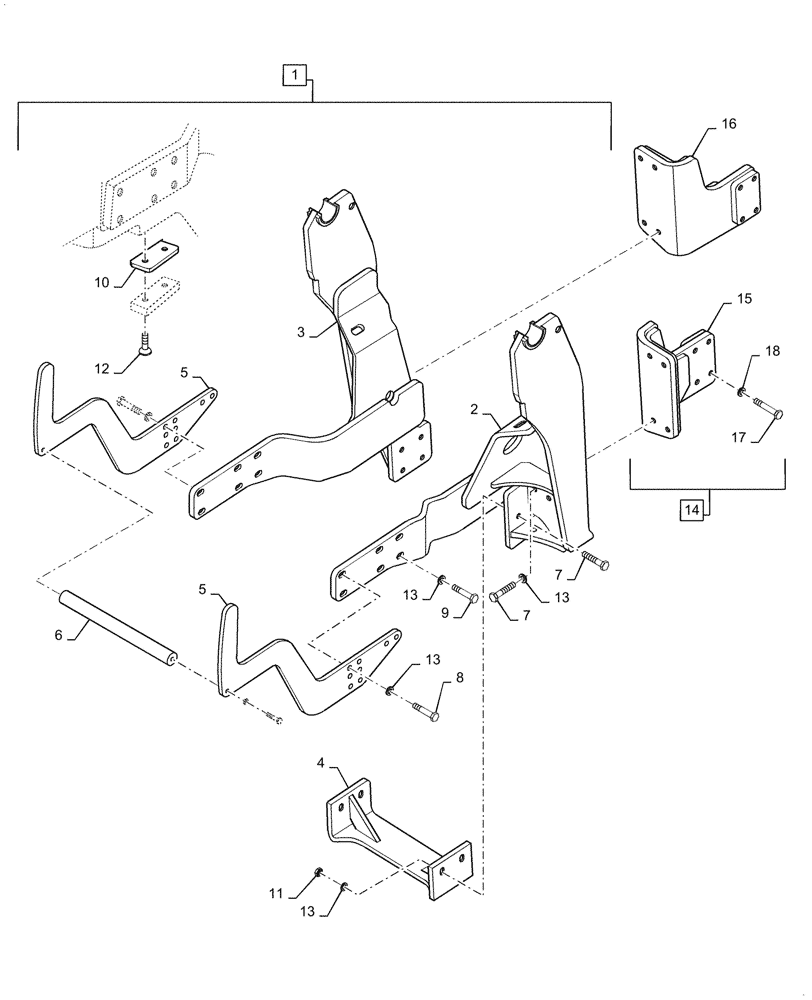

Запчасти Case IH LX760 (39.100.200) - VAR - 715460006, 730653006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 13, Order Through Wholegoods 715460006

1шт.

Compatible Tractors - Case MXM120/130/140/155

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10386922

SUPPORT

Cross Bar

1шт.

5

LDR10386427

BRACKET

Grille Guard

2шт.

6

LDR335212

TUBE,720mm L

1шт.

7

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

12шт.

8

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

6шт.

9

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

6шт.

10

LDR10356810

PLATE

Spacer, 6mm Thk

2шт.

11

LDR5011559

LOCK NUT,M20

4шт.

12

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.

13

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

24шт.

14

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 15 - 18, Order Through Wholegoods 730653006

1шт.

Compatible Tractors - Case MXM120/130/140/155

1шт.

15

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 14

1шт.

17

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

8шт.

18

LDR5013413

WASHER

20.2mm ID x 30.6mm OD x 4mm Thk

8шт.
