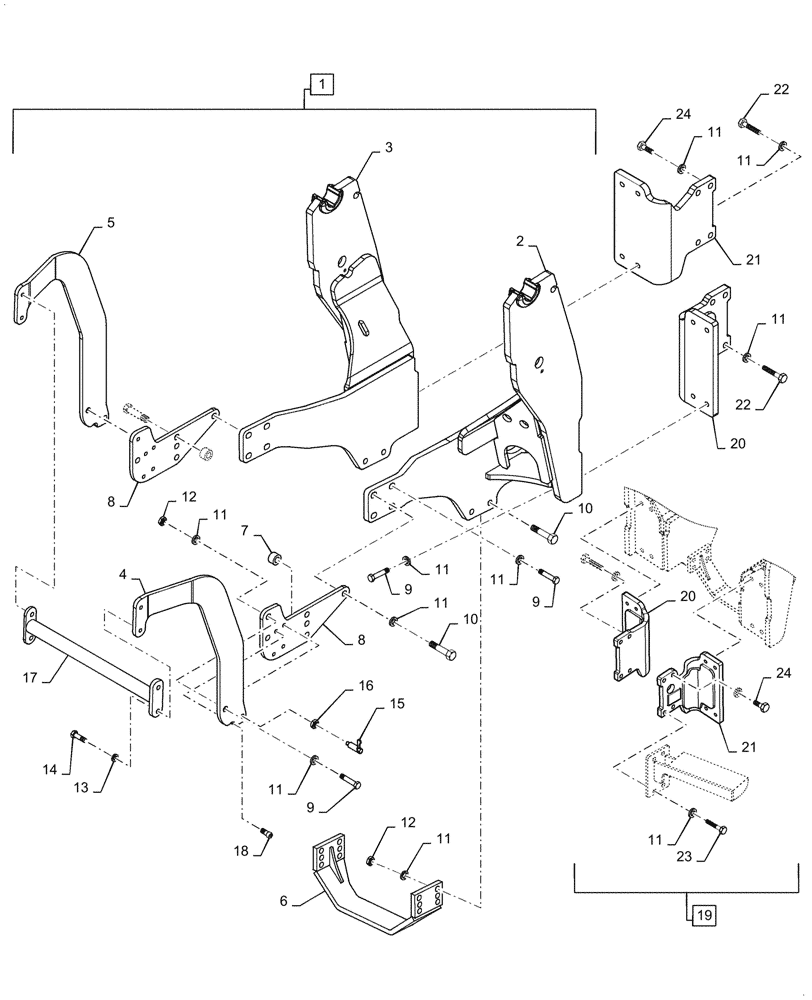

Запчасти Case IH LX760 (39.100.190) - VAR - 715453016, 715450026 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, 17, 18, Order Through Wholegoods 715453016

1шт.

Compatible Tractors - Puma 115/125/140/155, CVT

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

5

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

6

LDR10388123

SUPPORT

Cross Bar

1шт.

Non SuperSteer Use Top Bolt Holes

1шт.

SuperSteer Use Top Bolt Holes

1шт.

7

LDR1109053

SPACER

Sleeve, 25mm Thk

4шт.

8

LDR10411695

BRACKET, SUPPORTING

Support

2шт.

9

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

16шт.

10

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

10шт.

11

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

36шт.

12

LDR5011559

LOCK NUT,M20

6шт.

13

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

14

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

15

LDR5016994

PIN

Locking

2шт.

16

LDR5011922

NUT

M20 x 1.5

2шт.

17

LDR10411696

BAR

Tie

1шт.

18

LDR5004940

SCREW

M16 x 20mm L

2шт.

19

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 11, 20 - 24, Order Through Wholegoods 715450026

1шт.

Compatible Tractors - Puma 115/125/140/155, CVT

1шт.

20

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 19

1шт.

22

LDR5002958

SCREW

M20 x 65mm L, Cl 10.9

6шт.

Used On Bottom Of RH Bracket (2 Bolts) - Compatible Tractors - Puma 130, 145, 160 T4

1шт.

23

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

4шт.

Used On RH Bracket (4 Bolts) - Compatible Tractors - Puma 125, 140, 155 T3

1шт.

24

LDR5002934

SCREW

M20 x 55mm L, Cl 10.9

2шт.

Used On Top Of RH Bracket (2 Bolts) - Compatible Tractors - Puma 130, 145, 160 T4

1шт.
