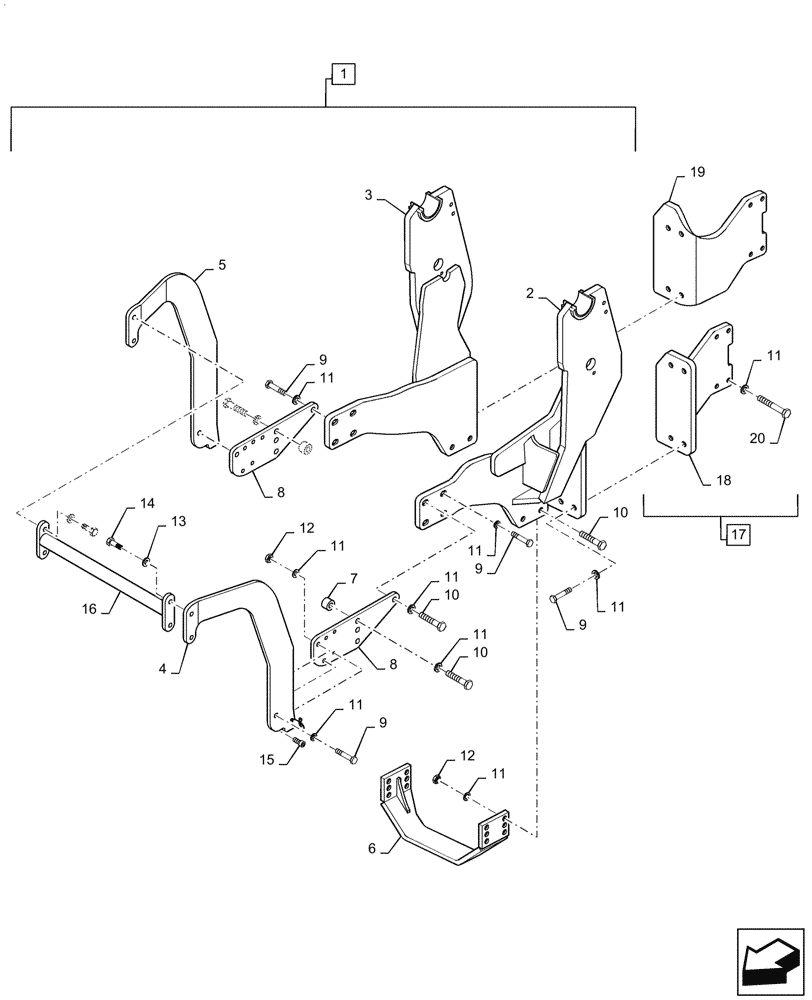

Запчасти Case IH LX760 (39.100.180) - VAR - 715459006, 715687036 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 16, Order Through Wholegoods 715459006

1шт.

Compatible Tractors - MXU115/125/135, MAXXUM 115/125/140, 6 Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10411693

GUARD

Grille, LH

1шт.

5

LDR10411694

GUARD

Grille, RH

1шт.

6

LDR10388123

SUPPORT

Cross Bar

1шт.

Non SuperSteer Use Bottom Bolt Holes

1шт.

SuperSteer Use Top Bolt Holes

1шт.

7

LDR1109053

SPACER

25mm Thk

4шт.

8

LDR10412790

BRACKET

Support

2шт.

9

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

16шт.

10

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

10шт.

11

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

36шт.

12

LDR5011559

LOCK NUT,M20

6шт.

13

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

14

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

15

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

16

LDR10411696

BAR

Cross Member

1шт.

17

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 11, 18 - 20, Order Through Wholegoods 715687036

1шт.

Compatible Tractors - MXU115/125/135, MAXXUM 115/125/140, 6 Cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 17

1шт.

20

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

8шт.
