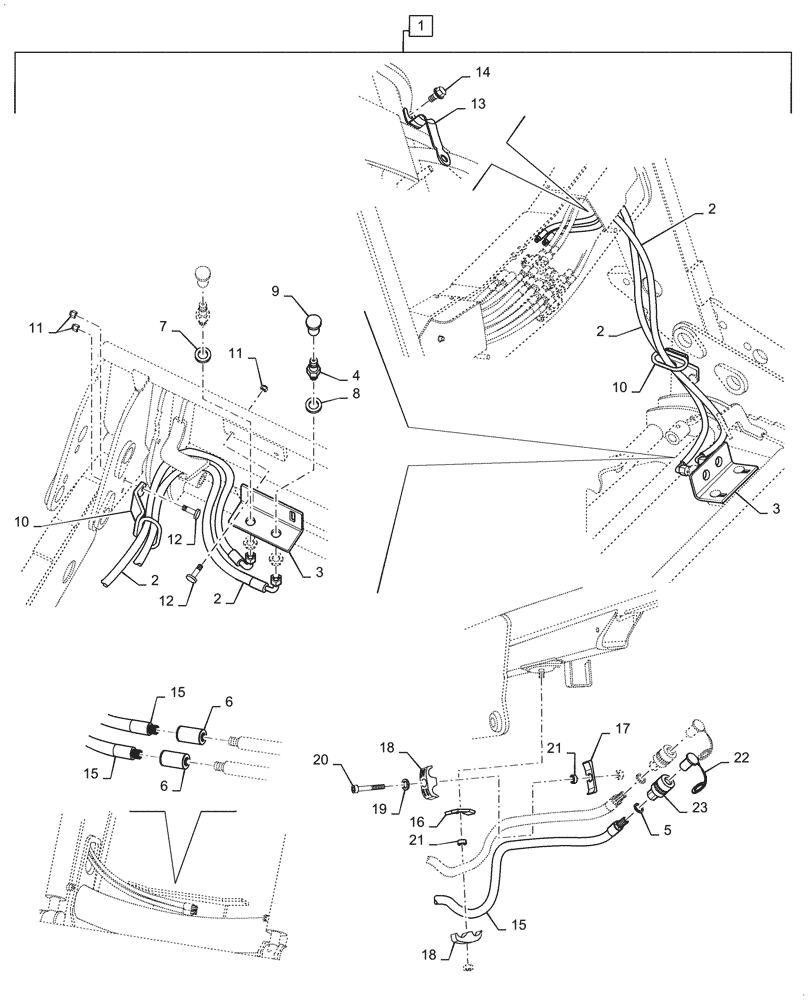

Запчасти Case IH LX760 (35.734.190) - VAR - 717695006 - LIVE 3RD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Live 3rd Function Hydraulics, Incl 2 - 23, Order Through Wholegoods 717695006

1шт.

2

LDR9032611

HYDRAULIC HOSE

3/8" OD x 1150mm L

2шт.

3

LDR5220303

BRACKET

Hydraulic Hose, Tool Carrier

1шт.

4

LDR5044940

QUICK MALE COUPLING,3/8" BSP

2шт.

5

LDR5013853

WASHER

18mm OD

2шт.

6

LDR5027986

ADAPTER

Tractor to Tool Carrier

2шт.

7

LDR5022159

WASHER

Blue

1шт.

8

LDR5022157

WASHER

Red

1шт.

9

LDR5044129

CAP

Dust

2шт.

10

LDR5219183

GUIDE

Hydraulic Hose, Lower

1шт.

11

LDR5011554

NUT,M10

4шт.

12

LDR5006002

SCREW

M10 x 30mm L

4шт.

13

LDR5215066

GUIDE

Hydraulic Hose, Mid

1шт.

14

LDR5006007

SCREW

M8 x 16mm L

1шт.

15

LDR9032608

HYDRAULIC HOSE

3/8" OD x 3630mm L, Loader to Tractor

2шт.

16

LDR5220148

PLATE

Hydraulic Hose, Inner

1шт.

17

LDR5215163

BRACKET

Hydraulic Hose, Outer

1шт.

18

LDR5215161

CLAMP

Hydraulic Hose

2шт.

19

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

1шт.

20

LDR5004055

SCREW

M8 x 70mm L

1шт.

21

LDR5215162

CLAMP BRACKET

Hydraulic Hose

2шт.

22

LDR5044130

PROTECTIVE COVER

Coupler

2шт.

23

LDR5044127

COUPLING, QUICK, FEM,1/2"

2шт.
