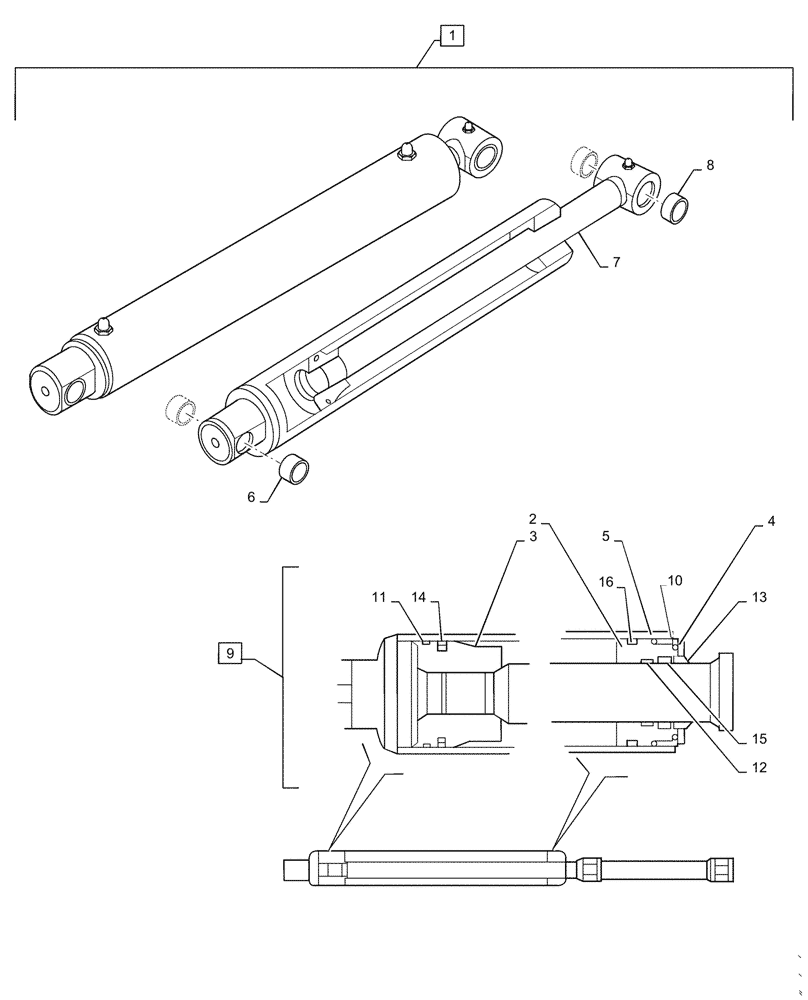

Запчасти Case IH LX760 (35.723.100) - BUCKET LIFT CYLINDER - NSL (35) - HYDRAULIC SYSTEMS

1

LDR12715710

CYLINDER,Double Acting, 40mm Rod, 570mm Stroke

Bucket Lift, Incl 2 - 8, 10 - 16

1шт.

2

LDR12710011

BEARING ASSY

Hydraulic Cylinder

1шт.

3

LDR12710012

PISTON

Hydraulic

1шт.

4

LDR5016624

RING

Retaining

1шт.

5

LDR5016677

RING

Retaining

1шт.

6

LDR5018514

BUSHING,35mm L

2шт.

7

LDR12715723

FLUID COUPLING

Piston Rod

1шт.

8

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

9

LDR5033710

SEAL PACKAGE

Services 1, Contains 7 Seals, Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O - Ring, 91.6mm OD x 3.53mm Thk, Incl in 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 95mm ID x 10mm OD x 5.5mm Thk, Incl in 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 50mm ID x 55mm OD x 9.7mm Thk, Incl in 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Seal, 50mm ID x 60mm OD x 7mm Thk, Incl in 1, 8

1шт.

14

NSS

NOT SOLD SEPARAT

Piston Seal, 84.5mm ID x 100mm OD x 6.3mm Thk

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 50mm ID x 60mm OD x 10mm Thk, Incl in 1, 8

1шт.

16

NSS

NOT SOLD SEPARAT

Cover Seal, 93.8mm ID x 100mm ODx 6.9mm Thk, Incl in 1, 8

1шт.
