(35.100.080) - LOADER ARM HYDRAULICS - NSL

Запчасти Case IH LX750 (35.100.080) - LOADER ARM HYDRAULICS - NSL (35) - HYDRAULIC SYSTEMS

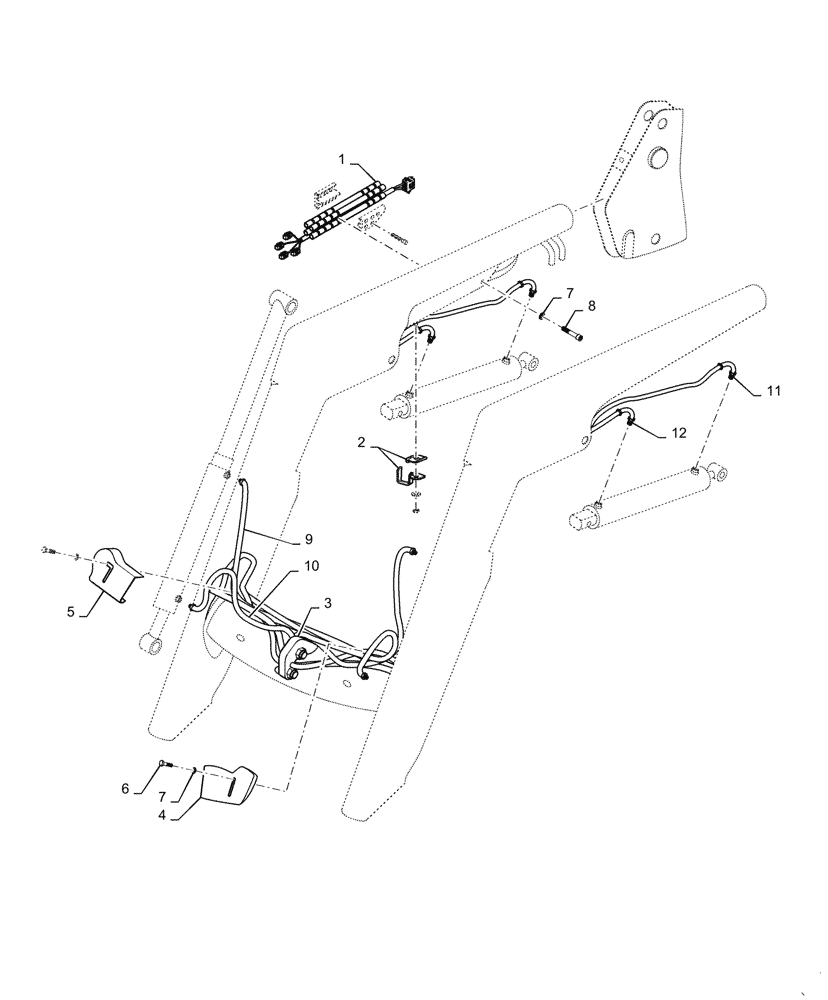

Схема запчастей Case IH LX750 - (35.100.080) - LOADER ARM HYDRAULICS - NSL (35) - HYDRAULIC SYSTEMS
5
6
4
9
2
8
3
7
11
7
1
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR9032555

HYD CONNECTOR

Main

1шт.

2

LDR5215167

CLAMP

Hydraulic Hose Protection, Assy

1шт.

3

LDR10550258

BLOCK VALVE FOR REMO

1шт.

4

LDR5220601

COVER

LH

1шт.

5

LDR5220603

COVER

RH

1шт.

6

LDR5011910

NUT

2шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

8

LDR5005128

SCREW

1шт.

9

LDR9032601

HYDRAULIC HOSE

Upper, 3/8" OD x 1130mm L

2шт.

10

LDR9032631

HYDRAULIC HOSE

Lower, 3/8" OD x 750mm L

2шт.

11

LDR9032530

HYDRAULIC HOSE

Upper Boom Lift Cylinder, 3/8" OD x 2580mm L

2шт.

12

LDR9032521

HYDRAULIC HOSE

Lower Boom Lift Cylinder, 3/8" OD x 1950mm L

2шт.
