/ / / / / / / / (35.310.AJ[06]) - MAIN HOSE KIT - NSL

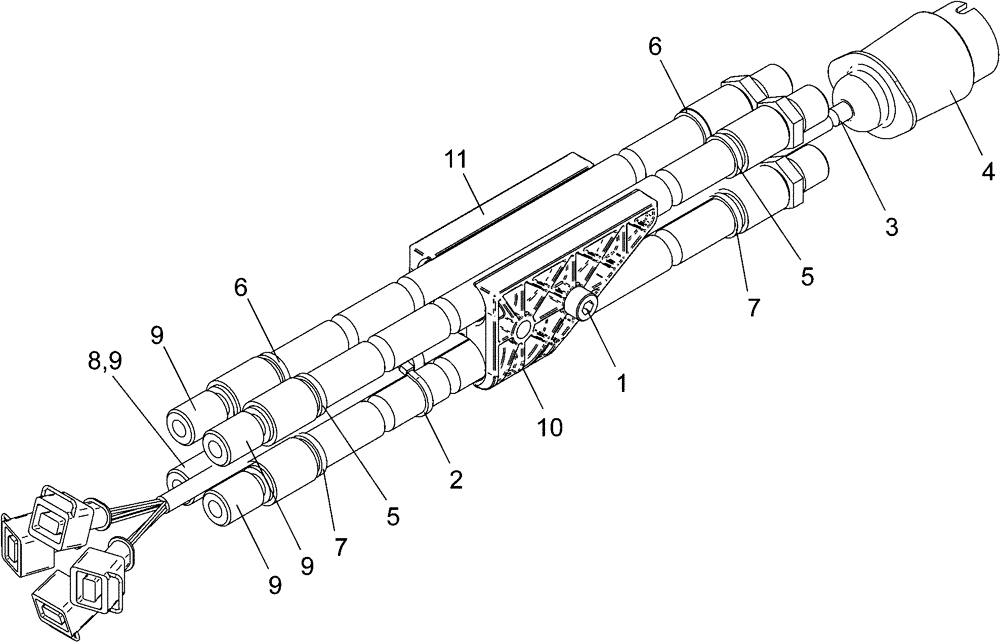

Запчасти Case IH LX750 (35.310.AJ[06]) - MAIN HOSE KIT - NSL (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH LX750 - (35.310.AJ[06]) - MAIN HOSE KIT - NSL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/1223395.png)
7
9
5
3
6
4
2
1
9
9
10
8
7
11
6
9
5
LDR9031313
HOSE KIT
Inc. 1 - 11
1шт.
1
LDR5004918
SCREW
1шт.
2
LDR5033621
CABLE CLIP
6шт.
3
LDR5102049
ELECTRIC CABLE
Inc. 4
1шт.
4
LDR5024379
ELEC CONNECTOR
1шт.
5
LDR5103013
SLEEVE
2шт.
6
LDR5103014
SLEEVE
2шт.
7
LDR5103015
SLEEVE
2шт.
8
LDR5103016
SLEEVE
2шт.
9
LDR9031212
FLEXIBLE HOSE
4шт.
10
LDR5215051
CLAMP BRACKET
1шт.
11
LDR5215052
CLAMP BRACKET
1шт.
