(39.100.260[A]) - VAR - 715456006, 716454036 - SUBFRAME, MOUNTING PARTS

Запчасти Case IH LX740 (39.100.260[A]) - VAR - 715456006, 716454036 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

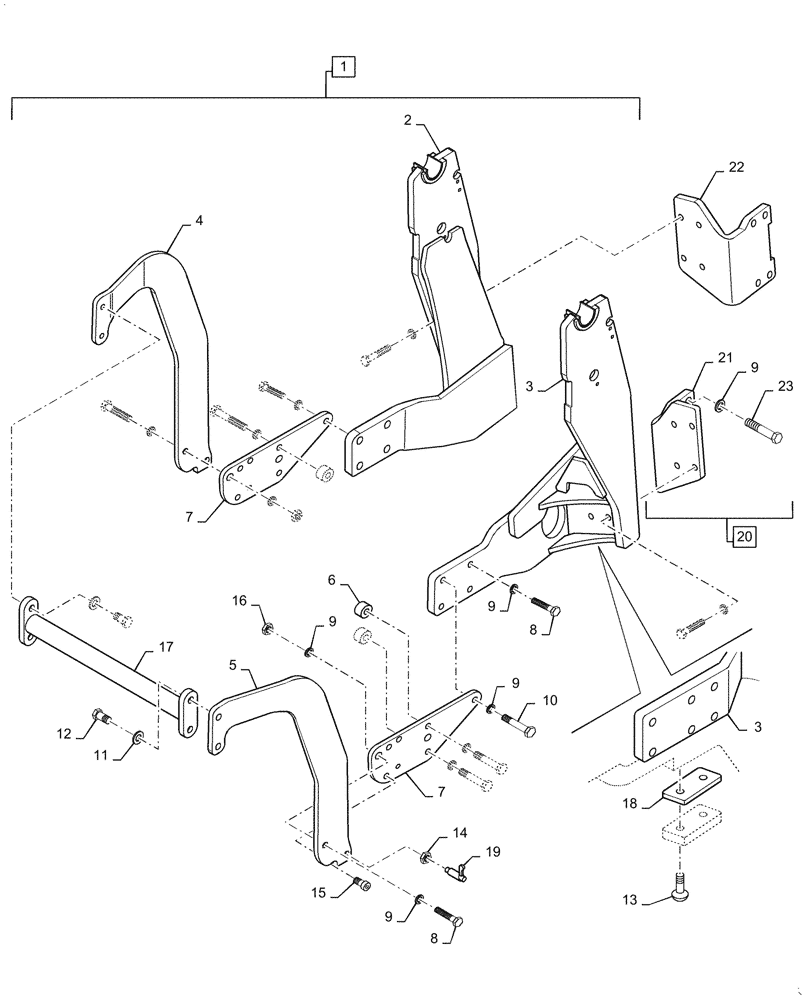

Схема запчастей Case IH LX740 - (39.100.260[A]) - VAR - 715456006, 716454036 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING
19
12
18
21
8
23
8
17
7
9
11
20
9
14
16
22
13
3
10
9
5
7
6
1
9
4
15
3
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 19, Order Through Wholegoods 71546006

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

4

LDR10411694

GUARD

Grille, RH

1шт.

5

LDR10411693

GUARD

Grille, LH

1шт.

6

LDR1109053

SPACER

Sleeve

4шт.

7

LDR10412790

BRACKET

Support

2шт.

8

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

16шт.

9

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

32шт.

10

LDR5002203

BOLT

M20 x 70mm L, CL 10.9

6шт.

11

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

12

LDR5002170

SCREW

M16 x 30mm L, CL 8.8

4шт.

13

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.

14

LDR5011922

NUT

2шт.

15

LDR5004940

SCREW

M10 x 30mm L, CL 8.8

2шт.

16

LDR5011559

LOCK NUT,M20

2шт.

17

LDR10411696

BAR

Cross Member

1шт.

18

LDR10356810

PLATE

Spacer

2шт.

19

LDR5016994

PIN

Locking

2шт.

20

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 9, 21 - 23, Order Through Wholegoods 716454036

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 20

1шт.

22

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 20

1шт.

23

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

8шт.
