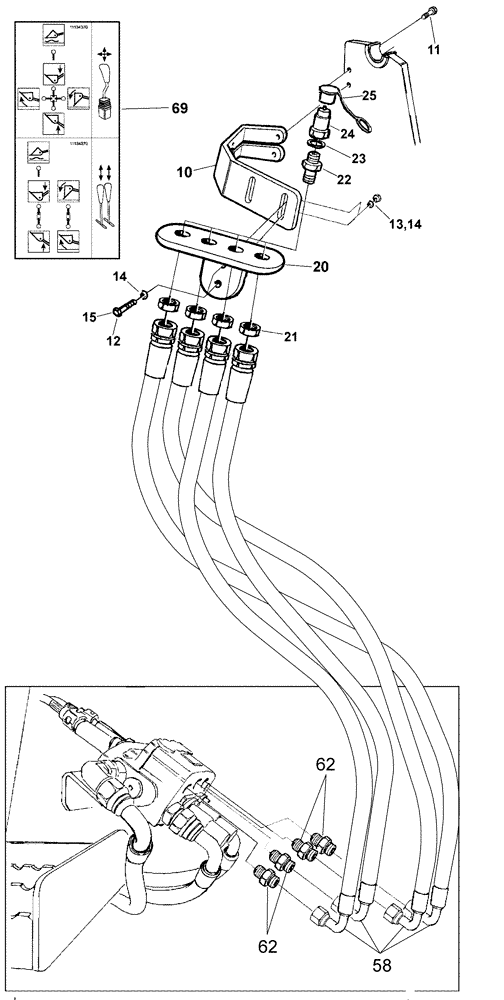

Запчасти Case IH LX740 (35.734.AA[05]) - LIVE 3RD HYDRAULICS (35) - HYDRAULIC SYSTEMS

LDR10360023

BRACKET, SUPPORTING

Inc. 10 - 15

1шт.

10

LDR10339558

BRACKET, SUPPORTING

1шт.

11

LDR5005999

SCREW,M10 x 45mm

M10 x 45

2шт.

12

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

M10 x 35, 8.8

2шт.

13

LDR5011054

NUT,M10, Cl 8.8

M10

2шт.

14

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

BRB 10,5 x 22 x 2

4шт.

15

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

M10 x 25, 8.8

2шт.

LDR10339937

BRACKET, SUPPORTING

Inc. 20 - 25

1шт.

20

LDR10339938

BRACKET, SUPPORTING

1шт.

21

LDR5011903

NUT

4шт.

22

LDR11120455

END FITTING

R 1/2"

4шт.

23

LDR5013853

WASHER

GBR 1/2 '

4шт.

24

LDR5044128

QUICK MALE COUPLING

4шт.

25

LDR5044129

CAP

4шт.

58

LDR9030900

HOSE

1-1/16"- 7/8" JIC x 1000

4шт.

62

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

M18 x 1,5-7/8" UNF JIC

4шт.

69

LDR11134370

DECAL

1шт.

LDR5033606

CABLE TIE

2шт.

LDR5033621

CABLE CLIP

5шт.
