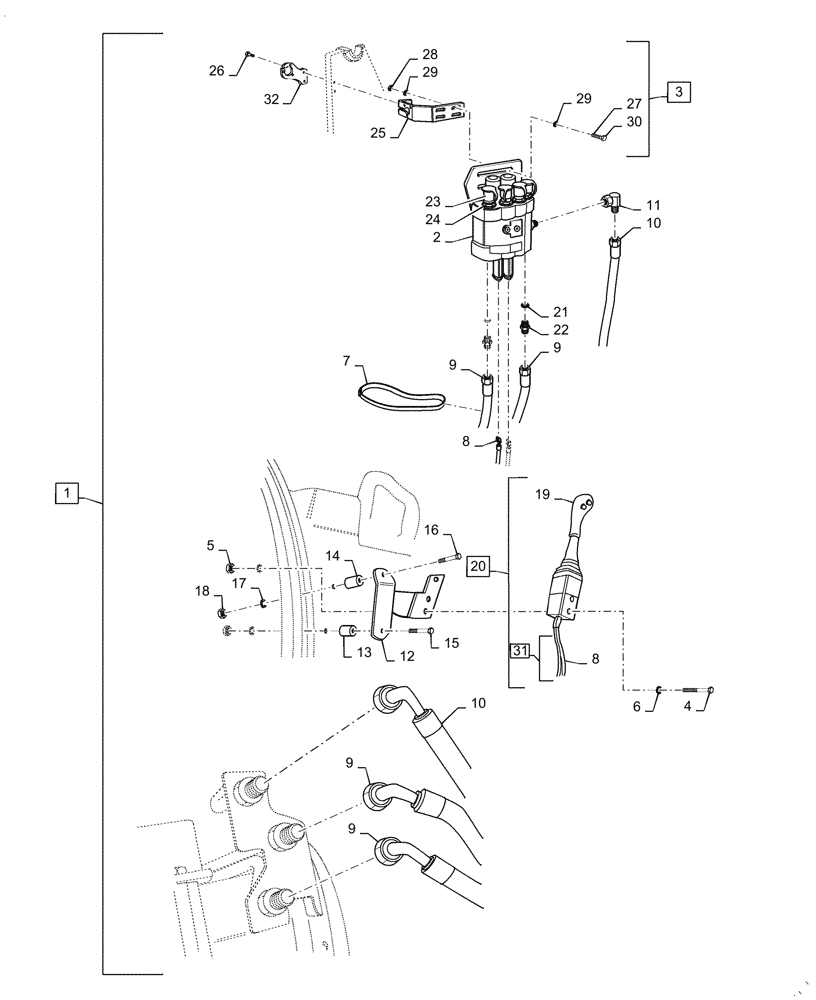

Запчасти Case IH LX740 (35.355.010) - VAR - 715842116 - JOYSTICK HYDR LINES, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Vavle Kit W/ Joystick, Incl 2 - 30, Order Through Wholegoods 715842116

1шт.

2

LDR10550062

CONTROL VALVE

Hydraulic

1шт.

3

LDR10360022

KIT

Mounting Bracket, Incl 26 - 30

1шт.

4

LDR5002062

SCREW

M8

2шт.

5

LDR5011053

NUT

M8

2шт.

6

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

7

LDR5033606

CABLE TIE

Hydraulic Hose

6шт.

8

LDR5020943

CABLE

Joystick, 1800 mm

2шт.

9

LDR9031589

HYDRAULIC HOSE

1-1/16" JIC x 1" UNF x 2150mm L

2шт.

10

LDR9031590

HYDRAULIC HOSE

1-1/16" JIC x 1" UNF x 2300mm L

1шт.

11

LDR5027936

ELBOW

1-1/16" UNF JIC x 1-1/16" UNF JIC

1шт.

12

LDR10358866

SUPPORT

Joystick

1шт.

13

LDR10358869

SPACER

45mm Thk

1шт.

14

LDR10358870

SPACER

55mm Thk

1шт.

15

LDR5002082

SCREW

M10 x 70mm L, Cl 8.8

1шт.

16

LDR5002092

SCREW

M10 x 80mm L, Cl 8.8

1шт.

17

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

18

LDR5011554

NUT,M10

Locking

2шт.

19

LDR5020909

KNOB

Handle Top

1шт.

20

LDR5020938

JOYSTICK

Assy, Incl 8, 19, 31

1шт.

21

LDR5013854

WASHER,M20

2шт.

22

LDR5027463

ADAPTER

2шт.

23

LDR5044131

QUICK MALE COUPLING

4шт.

24

LDR5013853

WASHER

4шт.

25

LDR10360032

BRACKET, SUPPORTING

1шт.

26

LDR5005999

SCREW,M10 x 45mm

2шт.

27

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

2шт.

28

LDR5011054

NUT,M10, Cl 8.8

2шт.

29

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.

30

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

2шт.

31

LDR5020935

INSERT

Joystick Insert, Incl 8

1шт.

32

LDR5201142

BRACKET

Mounting

1шт.
