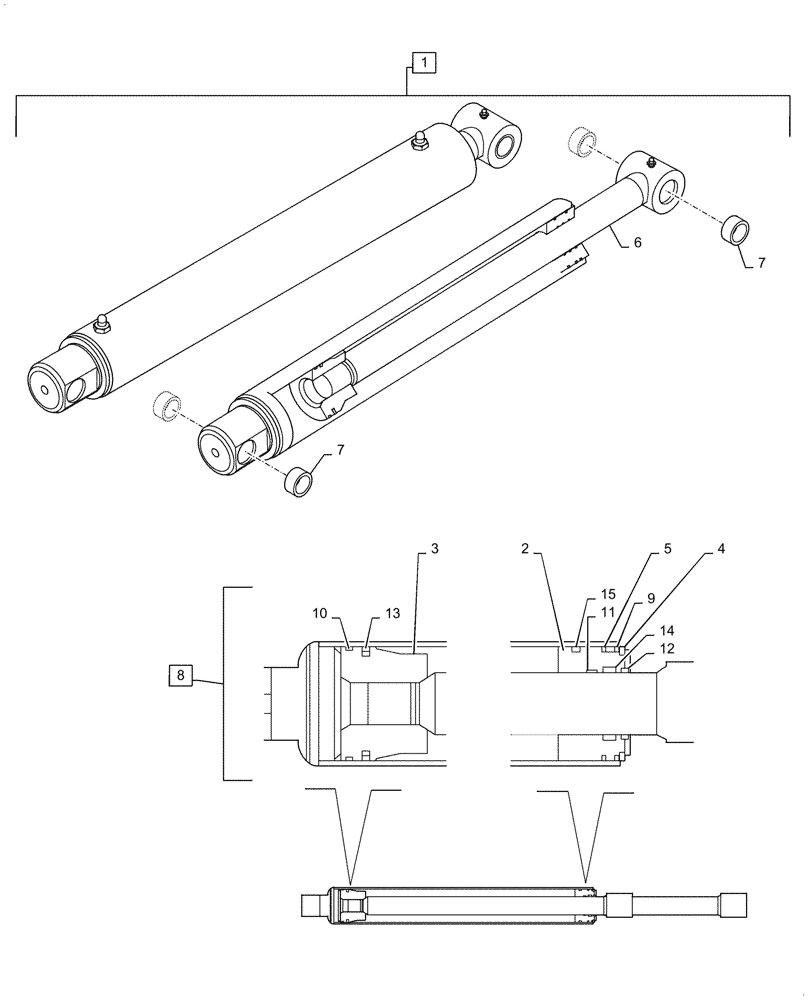

Запчасти Case IH LX730 (35.701.020) - BOOM LIFT CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12711610

CYLINDER,Double Acting, 40mm Rod, 530mm Stroke

Boom Lift Arm, Incl 2 - 15

1шт.

2

LDR12706511

BEARING

Hydraulic Cylinder Housing

1шт.

3

LDR12706512

PISTON

Lift Cylinder

1шт.

4

LDR5016608

RING

Retaining

1шт.

5

LDR5016668

RING

Retaining

1шт.

6

LDR12711823

FLUID COUPLING

Piston Rod

1шт.

7

LDR5018515

BUSHING,30mm L

4шт.

8

LDR5033703

SEAL KIT

Services 1, Contains 7 Seals, Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, Incl in 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, Incl in 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, Incl 1. 8

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Incl in 1. 8

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, Incl in 1, 8

1шт.
