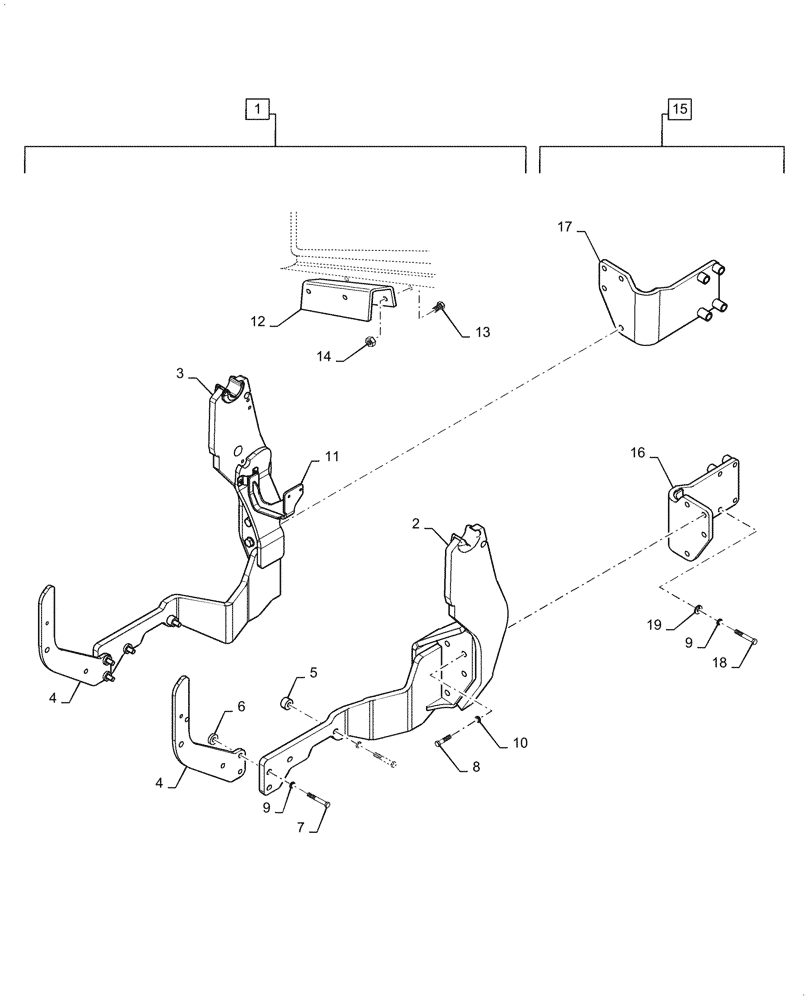

Запчасти Case IH LX720 (39.100.090) - VAR - 730408006, 717682006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 730408006

1шт.

Compatible Tractors - Farmall 70/80 2WD Only

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10389826

GUARD

Grille

2шт.

5

LDR9010011

SPACER

Sleeve, 25mm Thk

4шт.

6

LDR1109079

SPACER

Sleeve, 10mm Thk

4шт.

7

LDR5002756

BOLT

M16 x 1.5 x 80mm L, Cl 8.8

8шт.

8

LDR5002206

BOLT

M20 x 50mm L, Cl 8.8

8шт.

9

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

10шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

8шт.

11

LDR10411034

BRACKET

Support, Upper

1шт.

12

LDR10389602

BRACKET

Support

1шт.

13

LDR5002053

SCREW,M8 x 30mm L

2шт.

14

LDR5011053

NUT

M8

2шт.

15

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 9, 16 - 19

1шт.

Compatible Tractors - Farmall 70/80 2WD Only

1шт.

16

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 1

1шт.

18

LDR5002758

SCREW,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

19

LDR5013411

SPRING WASHER

16.2mm ID x 27.4mm OD x 3.5mm Thk

2шт.
