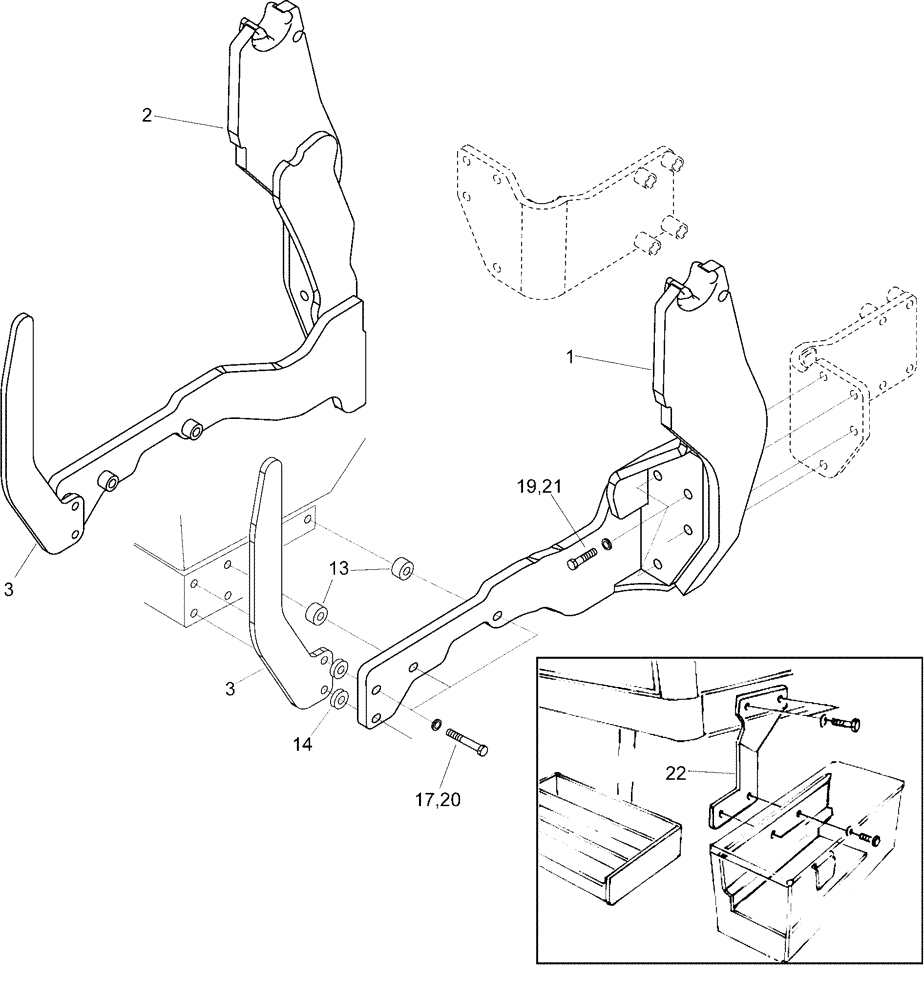

Запчасти Case IH LX720 (39.100.050) - SUBFRAME SET FOR JX55 - JX70 TRACTOR (39) - FRAMES AND BALLASTING

1

LDR10386511

FRAME

SUBFRAME, LEFT

1шт.

2

LDR10386512

FRAME

SUBFRAME, RIGHT

1шт.

3

LDR10357306

BRACKET

2шт.

13

LDR9010011

SPACER

L = 25

4шт.

14

LDR1109079

SPACER

L = 10

4шт.

17

LDR5002756

BOLT

M16 x 1,5 x 80, 8.8

8шт.

19

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

8шт.

20

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

21

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

22

LDR10386870

BRACKET

1шт.
