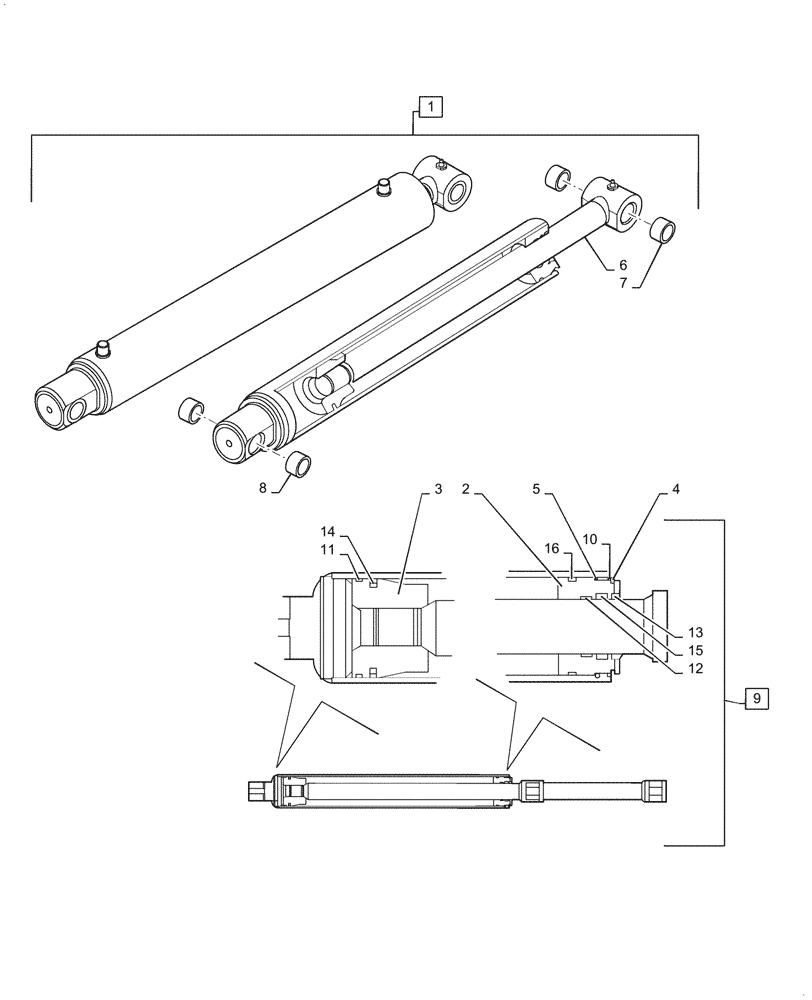

Запчасти Case IH LX720 (35.723.020) - BUCKET LIFT CYLINDER - NSL (35) - HYDRAULIC SYSTEMS

1

LDR12712410

CYLINDER,Double Acting, 40mm Rod, 530mm Stroke

Bucket Lift, Incl 2 - 8, 10 - 16

1шт.

1

LDR12712410R

REMAN-HYD CYLINDER

Remanufactured Hydraulic Cylinder

1шт.

1

LDR12712410C

CORE-HYD CYLINDER

Return Number, CYLINDER

1шт.

2

LDR12707011

BEARING

40mm ID x 70mm OD

1шт.

3

LDR12707012

PISTON

Hydraulic, 70mm OD

1шт.

4

LDR5016621

RING

Retaining

1шт.

5

LDR5016669

RING

Retaining

1шт.

6

LDR12712423

PISTON ROD/GLAND

Hydraulic Cylinder

1шт.

7

LDR5018514

BUSHING,35mm L

2шт.

8

LDR5018515

BUSHING,30mm L

2шт.

9

LDR5033704

SEAL KIT

Services 1, Contains 7 Seals, Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O - Ring, 63.09mm OD x 3.53mm Thk, Incl in 1, 9

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 65mm ID x 70mm OD x 5.5mm Thk, Incl in 1, 9

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 9

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 9

1шт.

14

NSS

NOT SOLD SEPARAT

Piston Seal, 54.5mm ID x 70mm OD x 6.3mm Thk, Incl in 1, 9

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 9

1шт.

16

NSS

NOT SOLD SEPARAT

Cover Seal, 64.6mm ID x 70mm OD x 6.2mm Thk, Incl in 1, 9

1шт.
