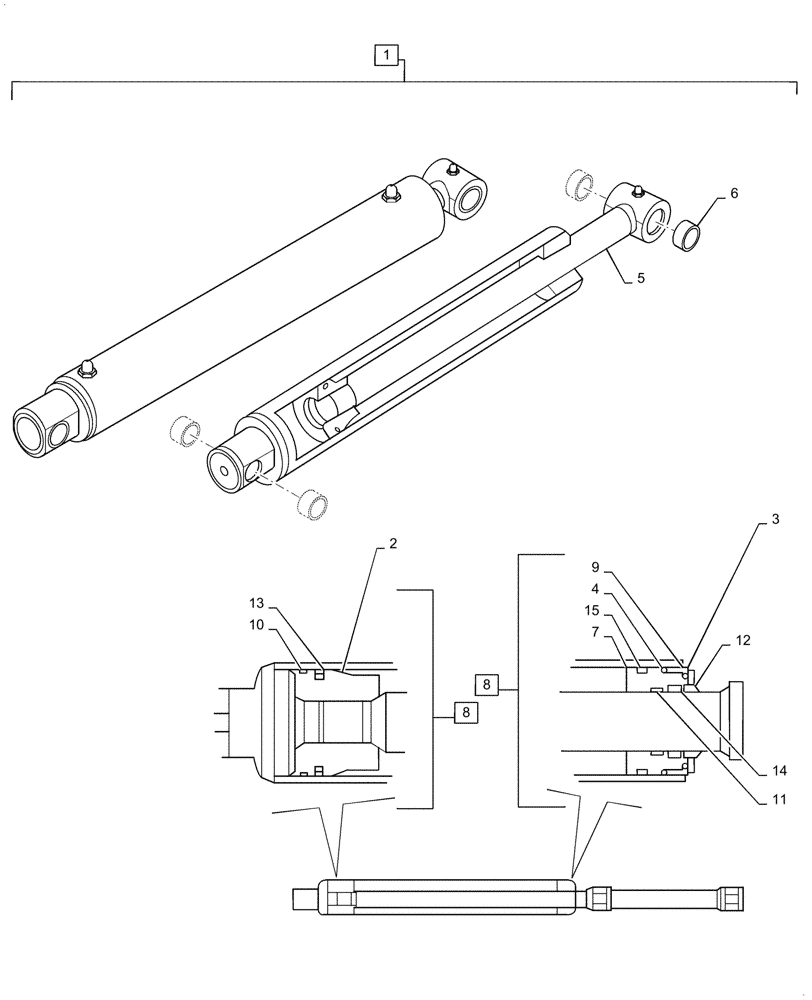

Запчасти Case IH LX720 (35.701.010) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12712210

CYLINDER,Double Acting, 40mm Rod, 490mm Stroke

Boom Lift Arm, Incl 2 - 15

1шт.

2

LDR12706512

PISTON

Lift Cylinder

1шт.

3

LDR5016608

RING

Retaining

1шт.

4

LDR5016668

RING

Retaining

1шт.

5

LDR12712223

FLUID COUPLING

Piston Rod

1шт.

6

LDR5018515

BUSHING,30mm L

4шт.

7

LDR12706511

BEARING

Hydraulic Cylinder Housing

1шт.

8

LDR5033703

SEAL KIT

Services 1, Contains 7 Seals, Incl 7, 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O - Ring, 58.74mm OD x 3.53mm Thk, Incl in 1, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 60mm ID x 65mm OD x 5.5mm Thk, Incl in 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 49.5mm ID x 65mm OD x 6.3mm Thk, Incl in 1, 8

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 8

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, 59.6mm ID x 65mm OD x 6.2mm Thk, Incl in 1, 8

1шт.
