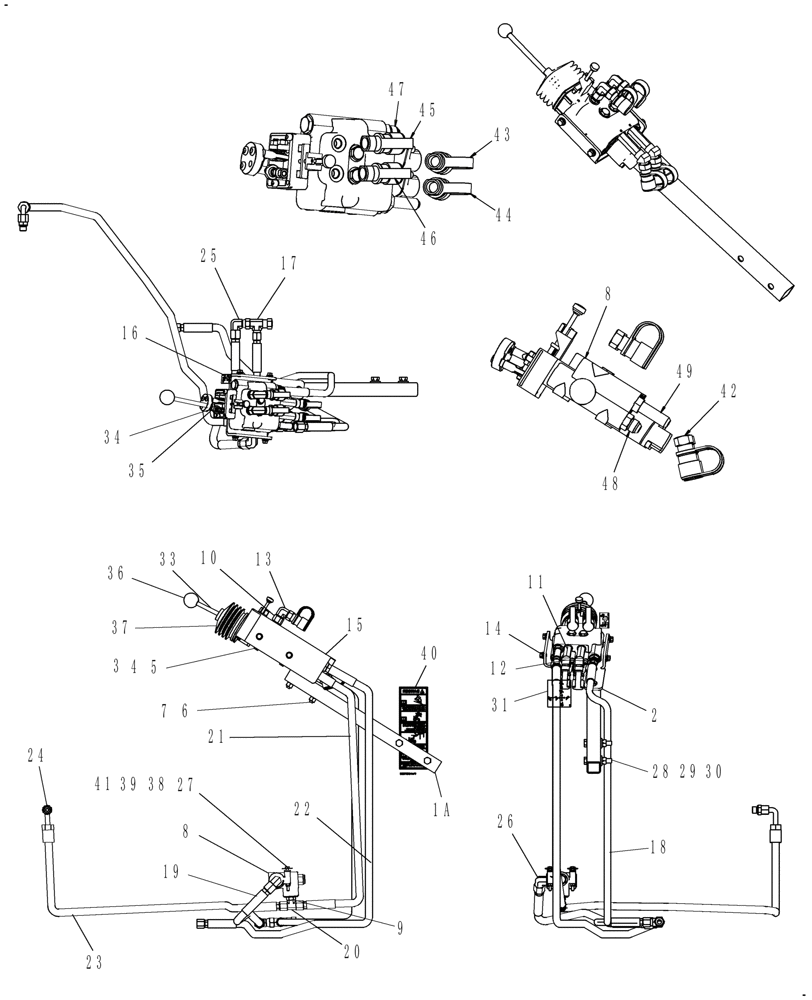

Запчасти Case IH LX360 (009) - DIA KIT, MID-MOUNT HYDRAULIC CONTROL VALVE, 2-SPOOL (FARMALL 45A/55A 2WD) - 710440156 (35) - HYDRAULIC SYSTEMS

1

710440156

DIA KIT, TRACTOR

Mid-Mount Hydraulic Control Valve, Spool Includes: Ref. 1A-41

1шт.

1a

84188842

TUBE

Valve Mounting

1шт.

2

84188843

MOUNTING PLATE

1шт.

3

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

6шт.

4

80681

LOCK WASHER,5/16"

6шт.

5

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

412141

NUT,M10 x 1.5, Cl 8

2шт.

8

84290914

VALVE PRESSURE RELIE

Relief 2500 psi

1шт.

8a

84294221

CARTRIDGE

Relief, Preset

1шт.

8b

84294222

SEAL KIT

Seal

1шт.

9

87036949

REDUCER,1/2"-14 Male NPTF x 3/8"-18 Female NPTF

1шт.

10

84191688

FITTING

2шт.

11

84197998

FITTING

Hydraulic Adapter W/O-Ring

2шт.

12

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

2шт.

13

76351

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

2шт.

14

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

15

84197638

COVER

Plate, Valve

1шт.

16

86401119

DECAL

Valve Lock

1шт.

17

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

Swivel

1шт.

18

84288748

HYDRAULIC HOSE

Inlet, Loader Valve

1шт.

19

84288751

HYDRAULIC HOSE

Pressure, Serial Range: Supply-Relief

1шт.

20

86977778

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

1шт.

21

84288749

HYDRAULIC HOSE

Tank, Loader to Relief Valve

1шт.

22

84288750

HYDRAULIC HOSE

PB, Serial Range: Loader-Hitch

1шт.

23

84288753

HYDRAULIC HOSE

Tank, Serial Range: Relief-Tank

1шт.

24

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

25

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

26

128828

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

1шт.

27

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

28

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

29

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

30

100038

NUT,M12 x 1.75, Cl 8

2шт.

31

84198816

DECAL

Loader Valve Operation

1шт.

33

84194203

HANDLE

1шт.

34

81547

LOCK WASHER,7/16"

1шт.

35

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

1шт.

36

511632

KNOB

1шт.

37

84194202

KIT

Boot & Cable Tie

1шт.

38

86624141

WASHER,0.28" ID x 1.12" OD x 0.06" Thk

2шт.

39

20356

NUT,1/4"-20, GB

2шт.

40

86979960

DANGER DECAL

Loader Safety

1шт.

41

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

42

9846343

COUPLING,3/8" NPTF

4шт.

43

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

44

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

45

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

46

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

47

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

48

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

49

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.
