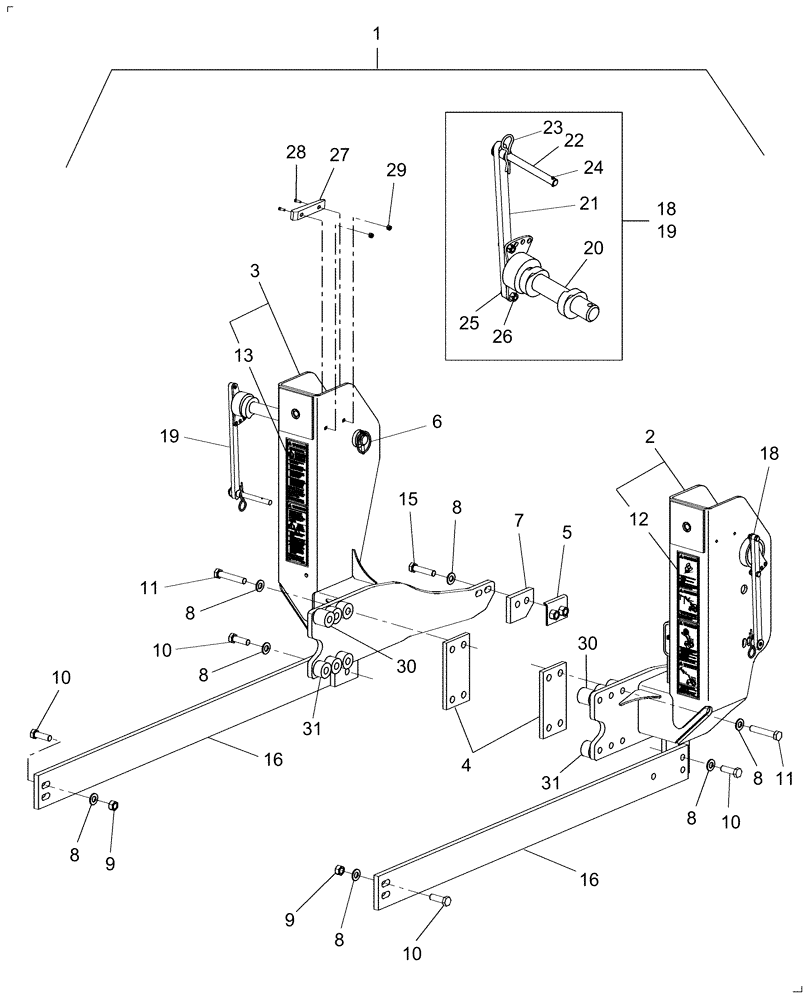

Запчасти Case IH LX350 (002) - MOUNT KIT (82) - FRONT LOADER & BUCKET

1

715782146

DIA KIT, TRACTOR

Mount Kit, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87485106

MOUNTING PARTS

Mid-Mount, RH

1шт.

3

87485105

MOUNTING PARTS

Mid-Mount, LH

1шт.

4

86578541

PLATE

2шт.

5

86579826

ANGLE

2шт.

6

A61560

LOCK PIN

2шт.

7

86589698

PLATE

Spacer

2шт.

7

86607952

PLATE

Spacer, 2WD Only

2шт.

Not Illustrated

1шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

24шт.

9

829-1416

NUT,M16, Cl 10

8шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

11

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

12шт.

12

86589568

DANGER DECAL

DANGER Loader

1шт.

13

86589569

DECAL

WARNING Loader Safety

1шт.

15

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

16

86836801

BAR

2шт.

18

0C

ORDER COMPONENTS

Cam Assy, RH Includes: Ref. 20-26

1шт.

19

0C

ORDER COMPONENTS

Cam Assy, LH Includes: Ref. 20-26

1шт.

20

87676098

CAM

RH

1шт.

20

87676097

CAM

LH

1шт.

21

87353820

LEVER

Cam

2шт.

22

87353821

LEVER

Handle

2шт.

23

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

2шт.

24

138-69

LOCK PIN,5/32" x 1/2", Slotted

2шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

27

87360897

GUIDE

2шт.

28

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

29

20356

NUT,1/4"-20, GB

4шт.

30

87389754

SPACER

2шт.

31

87389755

SPACER

2шт.
