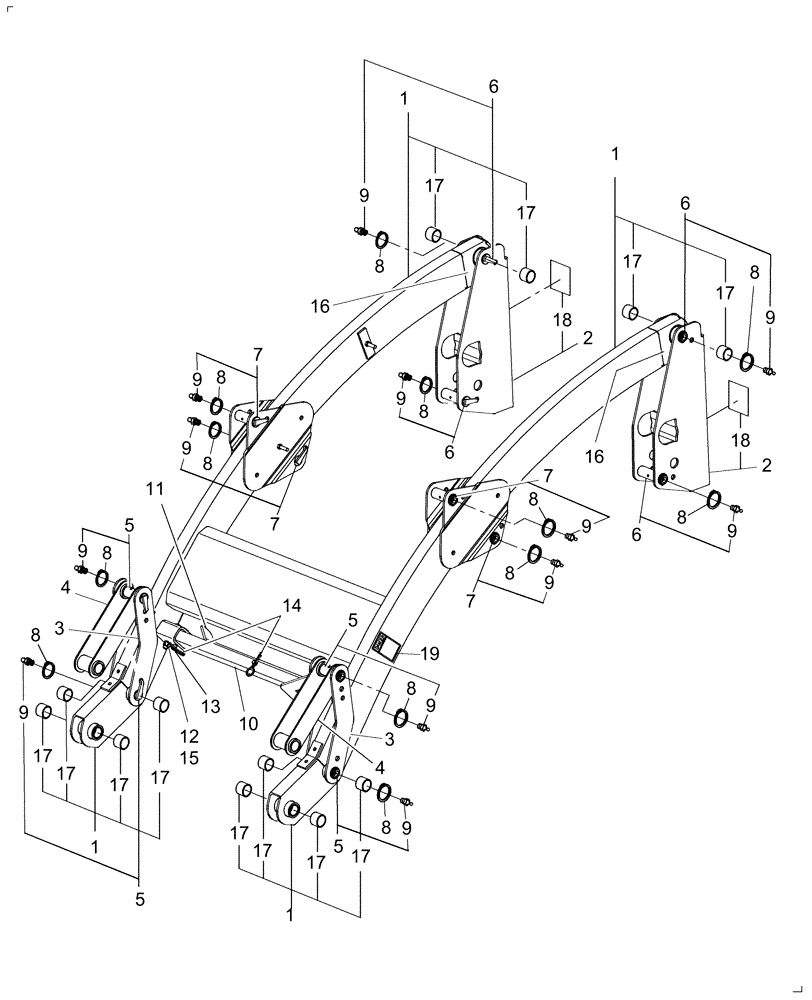

Запчасти Case IH LX350 (001) - LOADER FRAME (82) - FRONT LOADER & BUCKET

1

87523340

BOOM

1шт.

2

87521175

TOWER

2шт.

3

87584503

BRACKET, SUPPORTING

2шт.

4

87035654

LINK

90mm

2шт.

5

87489780

SPECIAL PIN,31.75mm OD x 124.35mm L

110mm Includes: Ref. 9

4шт.

6

87489772

SPECIAL PIN,31.75mm OD x 121.05mm L

107mm Includes: Ref. 9

4шт.

7

87489777

SPECIAL PIN,31.75mm OD x 97.7mm L

90mm Includes: Ref. 9

4шт.

8

40974

SNAP RING,#125, Ext

12шт.

9

87414

LUBE NIPPLE,1/4" - 28

12шт.

10

87523864

JACK

RH

1шт.

11

87523869

JACK

LH

1шт.

12

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

13

86980627

PIN,1/2" OD x 2-3/4" L

2шт.

14

33778

PIN,3-1/4" L

3шт.

15

88871

NUT,1/2"-13, GC

2шт.

16

87554959

COVER

2шт.

17

87028439

SPACER

12шт.

18

86532918

WARNING DECAL

DECAL WARNING, Bucket Shift

2шт.

19

86589567

DANGER DECAL

DANGER, Boom

2шт.
