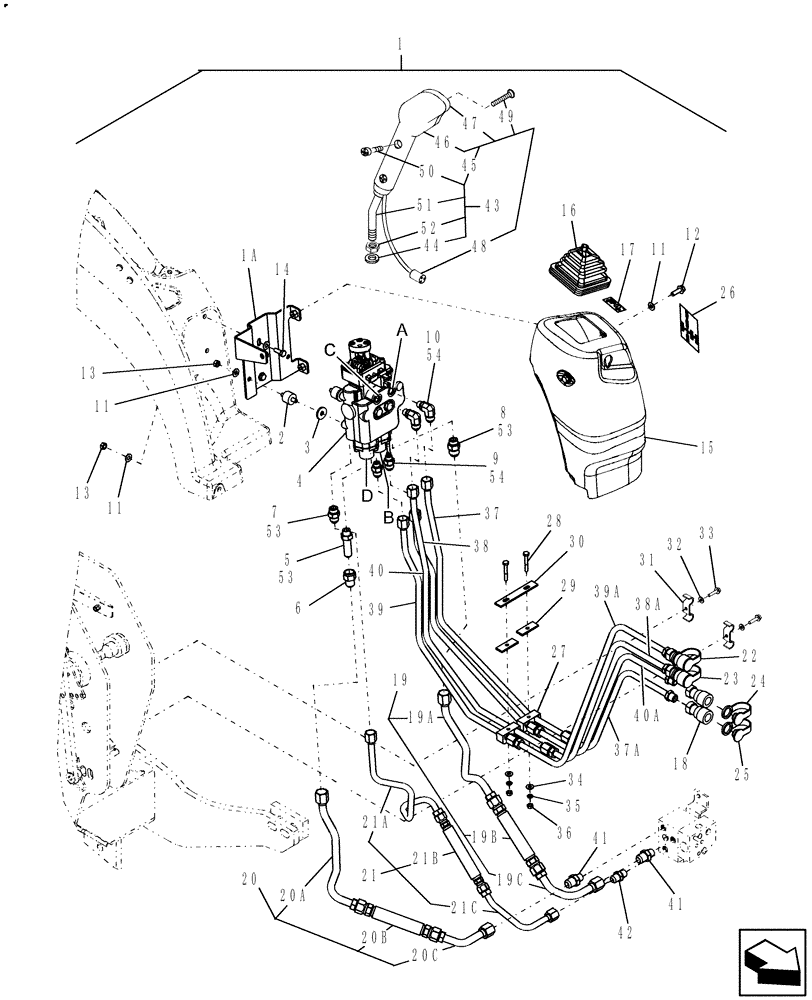

Запчасти Case IH LX350 (007.01) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT - 719918046 CAB W/HST (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
719918046
DIA KIT, TRACTOR
Mid-Mount Hydraulic Control Valve Kit used with HST Transmission & Cab
1шт.
1a
87609436
BRACKET
Bracket, Valve Mount
1шт.
2
86567772
INSULATOR
Valve
3шт.
4
87571203
HYDRAULIC VALVE
Hydraulic Valve
1шт.
5
9601710
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe
Includes: Ref. 53
1шт.
6
87039394
REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male
1шт.
8
86071
HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB
Includes: Ref. 53
1шт.
9
86509028
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
Includes: Ref. 54
2шт.
12
9671714
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
3шт.
13
9635082
NUT,5/16" - 18, Gr 5
5шт.
15
87609437
PROTECTIVE COVER
Cover, Loader Control
1шт.
16
86530982
BOOT
Loader Joystick
1шт.
17
86401119
DECAL
Valve Lock
1шт.
18
9846343
COUPLING,3/8" NPTF
Hydraulic, Female, O-Ring used is 122056 & Back-Up Ring used is 647327
4шт.
19
0C
ORDER COMPONENTS
Supply Includes: Ref. 19A-19C
1шт.
19a
87672373
HYD TUBE,15.88 mm OD x 250.7, 80.8 mm L
Control Valve
1шт.
19b
87673257
HOSE,16.00 mm ID, SAE 100R17 Class 25
1шт.
19c
87672374
HYD TUBE,15.88 mm OD x 96.8, 77.8 mm L
Diverter Valve
1шт.
20
0C
ORDER COMPONENTS
Power Beyond Includes: Ref. 20A-20C
1шт.
20a
87672376
HYD TUBE,15.88 mm OD x 272, 57.5 mm L
Control Valve
1шт.
20b
87673257
HOSE,16.00 mm ID, SAE 100R17 Class 25
1шт.
20c
87672377
HYD TUBE,15.88 mm OD x 102.1, 41.6 mm L
Diverter Valve
1шт.
21
0C
ORDER COMPONENTS
Tank Includes: Ref. 21A-21C
1шт.
21a
87672379
HYD TUBE,12.7 mm OD
Control Valve
1шт.
21b
87673643
HOSE,8.00 mm ID, SAE 100R17 Class 25
1шт.
21c
87672380
HYD TUBE,12.7 mm OD x 124.7, 83.4 mm L
Diverter Valve
1шт.
22
86597754
PLUG,29mm OD x 246mm L
Dust, Red
1шт.
23
86597755
PLUG,29mm OD x 246mm L
Dust, Blue
1шт.
24
86597757
PLUG,29mm OD x 246mm L
Dust, Green
1шт.
25
86597758
PLUG,29mm OD x 246mm L
Dust, Yellow
1шт.
26
86401095
DECAL
Loader Valve
1шт.
27
625822
CLAMP,1/2" Tube
1/2 Tube
2шт.
28
87404
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
29
86509354
PLATE,9/32" ID x 3/4" W x 2" L
Tab
2шт.
30
87673711
RETAINING PLATE
Dual Clamp
1шт.
31
86524859
CLAMP
Tube
2шт.
32
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
2шт.
34
87361
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
2шт.
35
80682
LOCK WASHER,1/4"
2шт.
36
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
37
87646240
HYD TUBE,12.7 mm OD x 485, 432.5 mm L
A2 Port, Boom Rod, Front (Yellow)
1шт.
37a
87646241
HYD TUBE,12.7 mm OD x 237.1, 104.5 mm L
A2 Port, Boom Rod, Rear (Yellow)
1шт.
38
87646243
HYD TUBE,12.7 mm OD x 484.9, 432.6 mm L
A1 Port, Bucket Base, Front (Blue)
1шт.
38a
87646242
HYD TUBE,12.7 mm OD x 261.9, 232.4 mm L
A1 Port, Bucket Base, Rear (Blue)
1шт.
39
87646245
HYD TUBE,12.7 mm OD x 388.58, 385.54 mm L
B1 Port, Bucket Rod, Front (Red)
1шт.
39a
87646244
HYD TUBE,12.7 mm OD x 310.9, 306.9 mm L
B1 Port, Bucket Rod, Rear (Red)
1шт.
40
87646246
HYD TUBE,12.7 mm OD x 388.48, 385.5 mm L
B2 Port, Boom Base, Front (Green)
1шт.
40a
87646247
HYD TUBE,12.7 mm OD x 213.8, 295.1 mm L
B2 Port, Boom Base, Rear (Green)
1шт.
41
242679
HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT
2шт.
42
163334
HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT
1шт.
43
86400438
HANDLE
Control Handle Includes: Ref. 44-52
1шт.
45
81872967
HANDLE
Loader Control Lever, HST Includes: Ref. 46-49
1шт.
46
81878190
HANDLE
1шт.
47
81870742
HANDLE
1шт.
48
81874053
SWITCH ASSY
& Wire Assembly
1шт.
49
81869171
SELF-TAP SCREW,M12 x 38mm
1шт.
50
82858251
SCREW,M6 x 10mm, Cl 4.8
M6, HST
2шт.
51
86400437
SUPPORT
Handle, HST
1шт.
52
87891
BHD LOCK NUT,Jam, 7/16"-20, G2
1шт.
Выбрано товаров: 68
