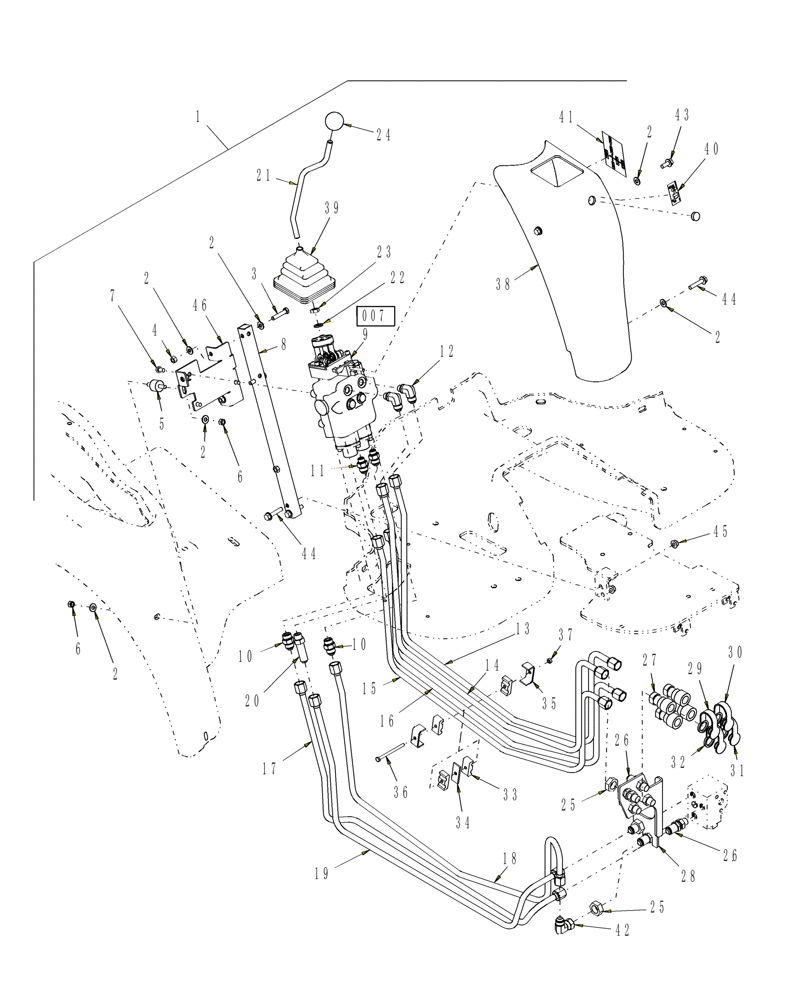

Запчасти Case IH LX340 (006) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT (35) - HYDRAULIC SYSTEMS

1

710440076

JOYSTICK CONTROL KIT

Mid-Mount Hydraulic Control Valve Kit

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

4

825-1408

NUT,M8, Cl 8

2шт.

5

86522829

SILENTBLOC

1шт.

6

425-105

NUT,5/16"-18, G5

2шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Cap, HH, G5, 5/16"-18 x 1/2"

3шт.

8

86405625

SUPPORT

1шт.

9

86403581

HYDRAULIC VALVE

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 47

2шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 48

2шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 48

2шт.

13

87300401

HYD TUBE

Port A2, Includes: Ref. 49 & 50

1шт.

14

87300402

HYD TUBE

Port A1, Includes: Ref. 49 & 50

1шт.

15

87300403

HYD TUBE

Port B1, Includes: Ref. 49 & 50

1шт.

16

87300404

HYD TUBE

Port B2, Includes: Ref. 49 & 50

1шт.

17

87300406

HYD TUBE

Tank, Includes: Ref. 49 & 50

1шт.

18

87300407

HYD TUBE

Pressure, Includes: Ref. 49 & 50

1шт.

19

87300602

HYD TUBE

Power Beyond, Includes: Ref. 49 & 50

1шт.

20

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 47

1шт.

21

86404419

HANDLE

Loader Valve

1шт.

22

492-11044

LOCK WASHER,7/16"

1шт.

23

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

1шт.

24

511632

KNOB

1шт.

25

87313

JAM NUT,Jam, 3/4"-16, G2

6шт.

26

86532865

ADAPTER

Male Bulkhead, Uses 87313 Jam Nut

7шт.

27

9846343

COUPLING,3/8" NPTF

Hyd, O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

28

87300400

BRACKET

Valve Support

1шт.

29

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

30

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

31

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

32

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

33

430357

CLAMP

4шт.

34

434097

SUPPORT

1шт.

35

431941

SUPPORT

2шт.

36

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

37

825-1406

NUT,M6, Cl 8

1шт.

38

86404705

PROTECTION CAP

Loader Control

1шт.

39

86530982

BOOT

Loader Joystick

1шт.

40

86401119

DECAL

Valve Lock

1шт.

41

86401095

DECAL

Loader Valve

1шт.

42

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

43

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

44

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

3шт.

45

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

46

86404684

SUPPORT

1шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Not Illustrated

1шт.

48

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

Not Illustrated

1шт.

49

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

14шт.

Not Illustrated

1шт.

50

235671

SLEEVE,37 Degree, 1/2" Tube

14шт.

Not Illustrated

1шт.
