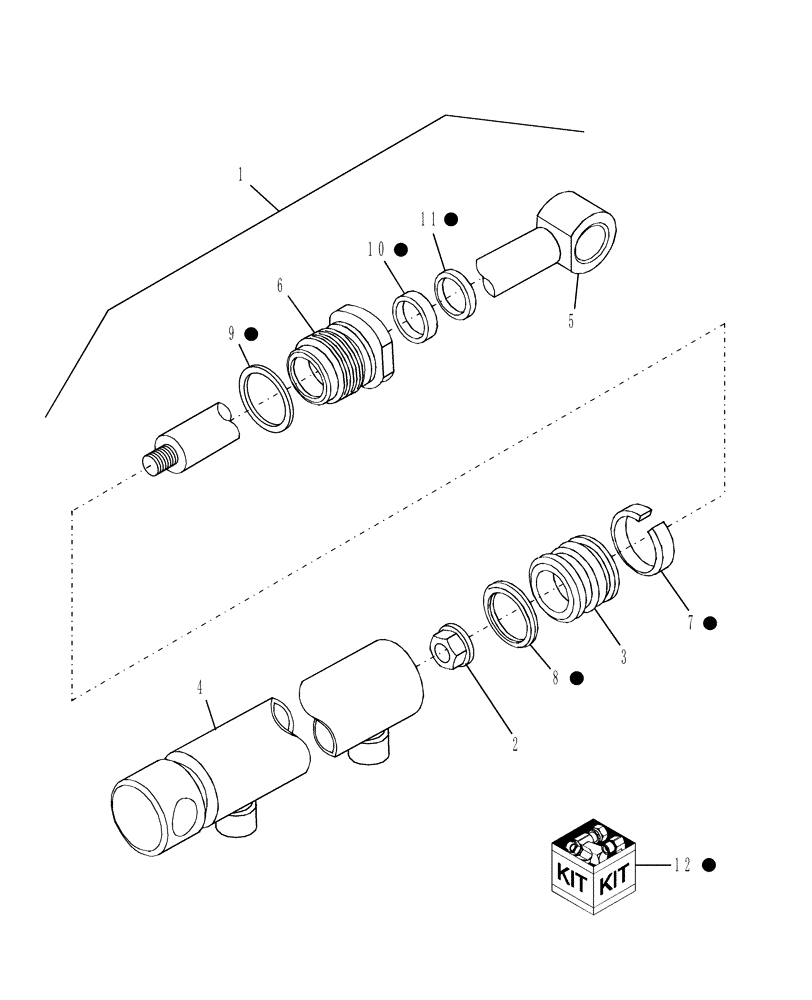

Запчасти Case IH LX340 (005) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

87399664

CYLINDER,Double Acting, 28.57mm Rod, 484mm Stroke

Bucket

1шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87041813

PISTON

1шт.

4

87041811

BODY

1шт.

5

87041812

ROD ASSY.

1шт.

6

87041814

HEAD

1шт.

7

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Dual Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

11

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

12

87041804

SEAL KIT

1шт.
