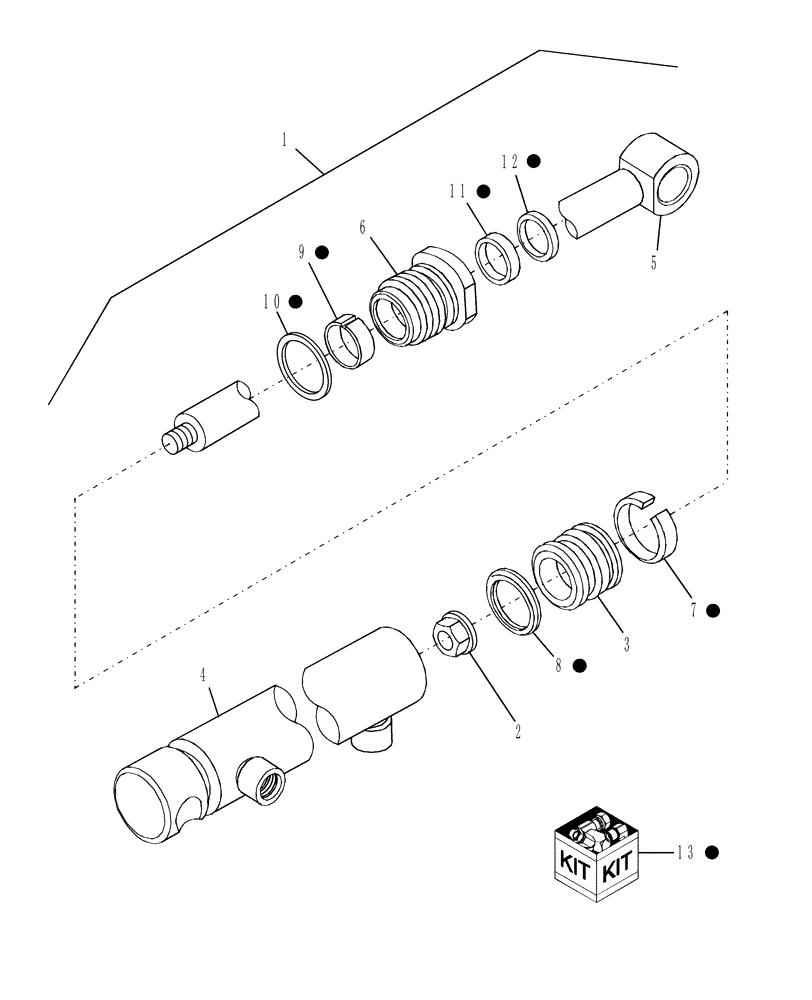

Запчасти Case IH LX340 (004) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87399665

CYLINDER,Double Acting, 34.92mm Rod, 464.3mm Stroke

Lift

1шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87041808

PISTON

1шт.

4

87041806

BODY

1шт.

5

87041807

ROD ASSY.

1шт.

6

87041810

HEAD

1шт.

7

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Dual Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

13

87041803

SEAL KIT

1шт.
