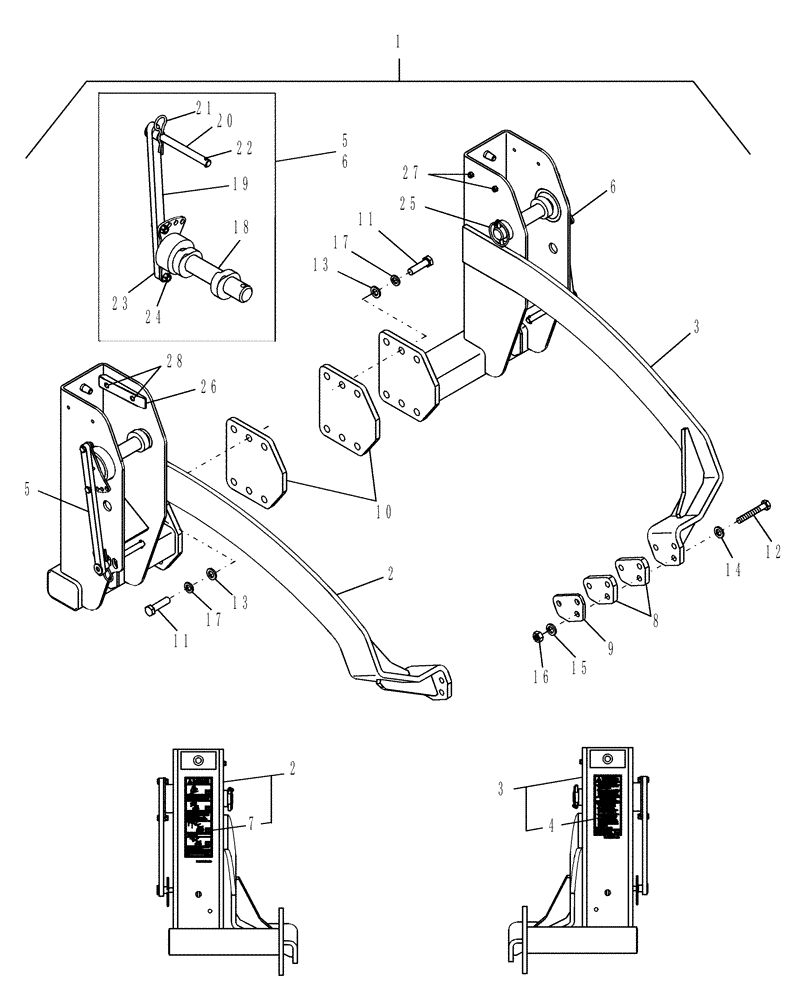

Запчасти Case IH LX340 (002) - MOUNT KIT (82) - FRONT LOADER & BUCKET

1

715782136

DIA KIT, TRACTOR

Mounting Kit

1шт.

2

87383592

BRACKET, SUPPORTING

Mid-Mount, RH

1шт.

3

87383593

BRACKET, SUPPORTING

Mid-Mount, LH

1шт.

4

86979962

WARNING DECAL

DANGER

1шт.

5

0C

ORDER COMPONENTS

Cam RH

2шт.

6

0C

ORDER COMPONENTS

Cam LH

2шт.

7

86979960

DANGER DECAL

DANGER

1шт.

8

87034543

SPACER

4шт.

9

87034544

SPACER

2шт.

10

87339314

PLATE ASSY.

Rear

2шт.

11

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

10шт.

12

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

6шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

15

892-1112

LOCK WASHER,M12

6шт.

16

829-1412

NUT,M12, Cl 10.9

6шт.

17

492-11062

BEARING WASHER,5/8"

10шт.

18

87663543

CAM

RH

1шт.

18

87663542

CAM

LH

1шт.

19

87353820

LEVER

2шт.

20

87353821

LEVER

2шт.

21

33778

PIN,3-1/4" L

2шт.

22

138-69

LOCK PIN,5/32" x 1/2", Slotted

2шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

25

A61560

LOCK PIN

2шт.

26

87360897

GUIDE

2шт.

27

86500656

LOCK NUT,M6 x 1, Cl 8

4шт.

28

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

4шт.
