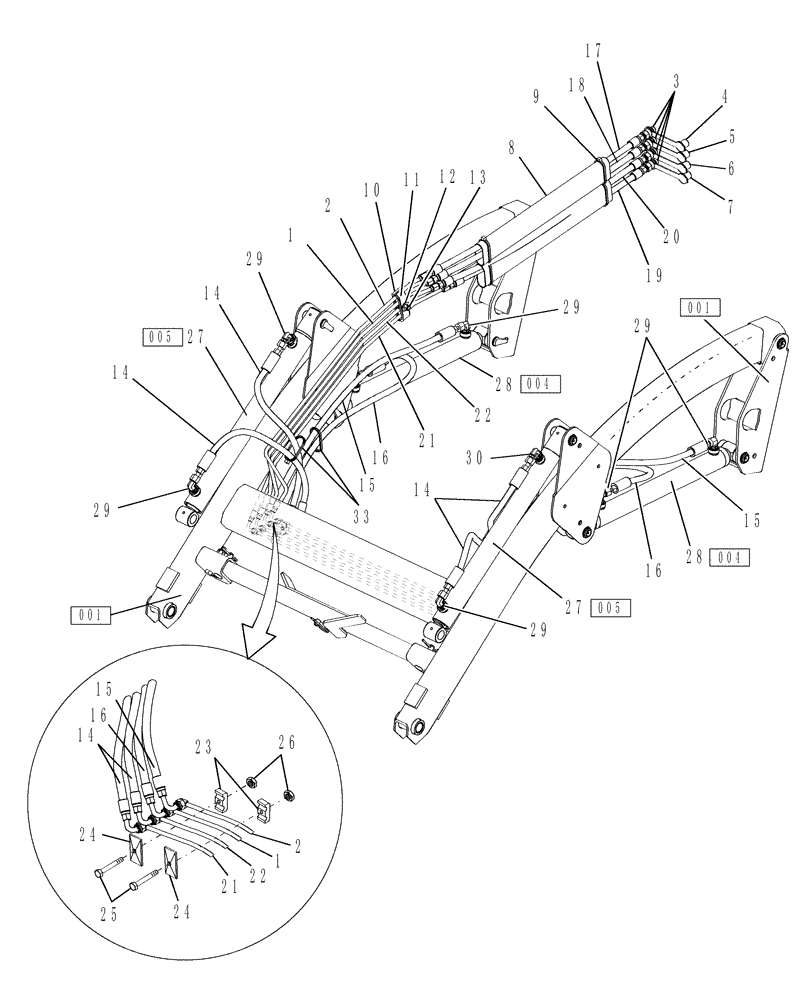

Запчасти Case IH LX330 (003) - HYDRAULICS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87348199
HYD TUBE,0.375" OD
Bucket Cylinder Rod End
1шт.
2
87348200
HYD TUBE,0.375" OD
Bucket Cylinder Base End
1шт.
3
87391227
FLUID COUPLING
4шт.
4
86597751
DUST CAP,23mm OD x 255mm L
Blue
1шт.
5
86597750
DUST CAP,23mm OD x 255mm L
Red
1шт.
6
86597752
DUST CAP,23mm OD x 255mm L
Green
1шт.
7
86597753
DUST CAP,23mm OD x 255mm L
Yellow
1шт.
8
87397063
PROTECTIVE COVER
2шт.
9
323597
CABLE TIE,165mm OAL x 9mm Thk
CABLE STRAP
2шт.
10
86836943
PAD
1шт.
11
86836945
CLAMP
1шт.
12
495-21044
WASHER,3/8"
2шт.
13
232-4146
NUT,3/8"-16, GC
2шт.
14
86836947
HYDRAULIC HOSE,9.50 mm ID x 676.00 mm, SAE 100R17 Class 25 Type 1
Bucket Cylinder
4шт.
15
86836949
HYDRAULIC HOSE,9.50 mm ID x 950.00 mm, SAE 100R17 Class 25 Type 1
Lift Cylinder Rod End
2шт.
16
86836950
HYDRAULIC HOSE,9.53mm ID x 1160mm L, SAE 100R17
Lift Cylinder Base End
2шт.
17
87546622
HYDRAULIC HOSE,9.52 mm ID x 777.00 mm, SAE 10017
Includes: Ref. 31 & 32
1шт.
18
87546624
HYDRAULIC HOSE,9.52 mm ID x 686.00 mm, SAE 100R17
Includes: Ref. 31 & 32
1шт.
19
87546627
HYDRAULIC HOSE,9.52 mm ID x 660.00 mm, SAE 100R17
Includes: Ref. 31 & 32
1шт.
20
87546629
HYDRAULIC HOSE,9.52 mm ID x 610.00 mm, SAE 100R17
Includes: Ref. 31 & 32
1шт.
21
87348201
HYD TUBE,0.375" OD
Lift Cylinder Rod End
1шт.
22
87397061
HYD TUBE,.375" OD
Lift Cylinder Base End
1шт.
23
86979293
CLAMP
4шт.
24
86979291
LOCKING TAB
4шт.
25
86979322
SELF-TAP SCREW,Hex Flg Hd, M6 x 35
4шт.
26
86603118
PUSH-ON NUT,1/2” OD x 5/64” Thk
Push
4шт.
27
87399662
CYLINDER,Double Acting, 28.6mm Rod, 489.9mm Stroke
Bucket
2шт.
28
87399663
CYLINDER
Lift
2шт.
29
87041924
FITTING
90°, Male 37° Fl. - Male, Includes: O-Ring, Use with Ref. 29
8шт.
Not Illustrated
1шт.
31
235670
SLEEVE,37 Degree, 3/8" Tube
4шт.
Not Illustrated
1шт.
32
514926
TUBE NUT,37 Degree, 9/16"-18, Type B
4шт.
Not Illustrated
1шт.
33
249730
SECURING STRAP,8" L
8шт.
