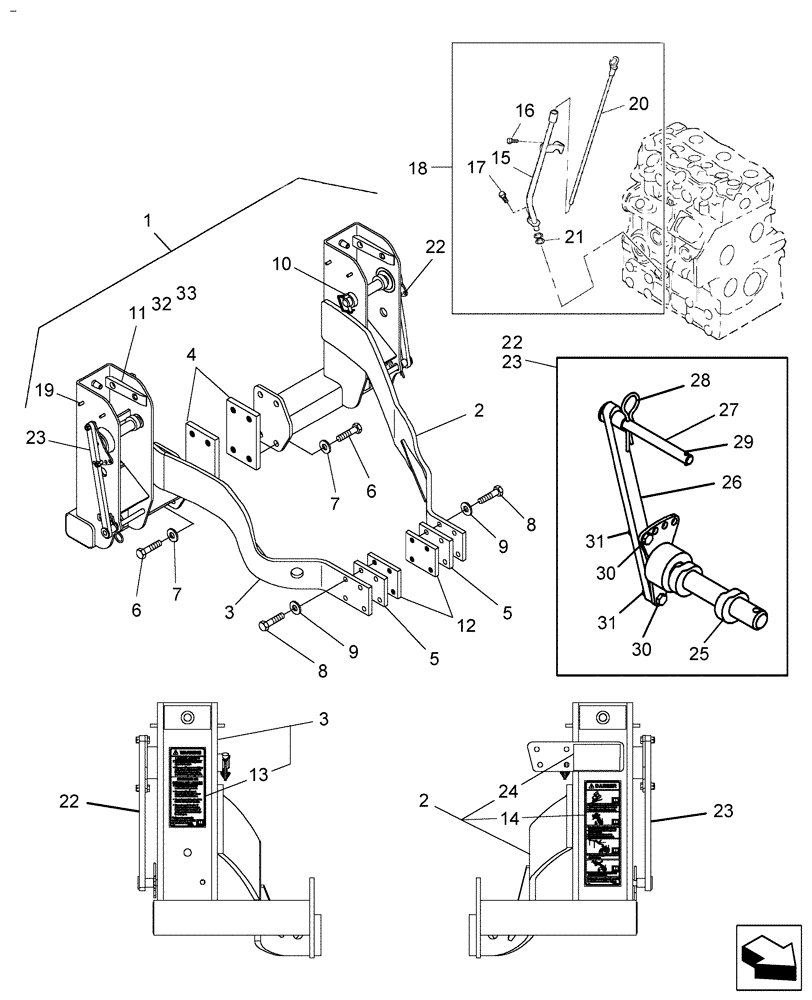

Запчасти Case IH LX330 (002) - MOUNT KIT (82) - FRONT LOADER & BUCKET

1

715782126

DIA KIT, TRACTOR

Mount Kit

1шт.

2

87383597

BRACKET, SUPPORTING

Mid-Mount, RH

1шт.

3

87383596

BRACKET, SUPPORTING

Mid-Mount, LH

1шт.

4

86982746

PLATE

Rear

2шт.

5

86982745

PLATE

Front

2шт.

6

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

9

892-1112

LOCK WASHER,M12

8шт.

10

86837801

PIN,7.93mm OD x 44.45mm L

Lock

2шт.

11

87360897

GUIDE

GUIDE

4шт.

12

87301363

PLATE

Threaded

2шт.

13

86979962

WARNING DECAL

WARNING, Loader

1шт.

14

86979960

DANGER DECAL

DANGER, Loader

1шт.

15

SBA110756201

GUIDE

Dipstick

1шт.

16

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

17

SBA011510816

BOLT

M8 x 16

1шт.

18

87024506

KIT

Oil Level Gage

1шт.

19

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

20

SBA198416640

LEVEL GAUGE CONTROL

1шт.

21

SBA052100100

O-RING

2шт.

22

0C

ORDER COMPONENTS

LH

1шт.

87354070

1шт.

23

0C

ORDER COMPONENTS

RH

1шт.

87354071

1шт.

24

87390202

DECAL

Loader Control

1шт.

25

87353819

CAM

LH, Use with Ref. 22

1шт.

25

87354073

CAM

RH, Use with Ref. 23

1шт.

26

87353820

LEVER

1шт.

27

87353821

LEVER

1шт.

28

33778

PIN,3-1/4" L

1шт.

29

138-69

LOCK PIN,5/32" x 1/2", Slotted

1шт.

30

87015747

BOLT,Hex, M8 x 25mm, Cl 8.8, Full Thd

2шт.

31

9991588

NUT,M8 x 1.25, Cl 8

2шт.

32

280129

NUT,1/4"-20

4шт.

33

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.
