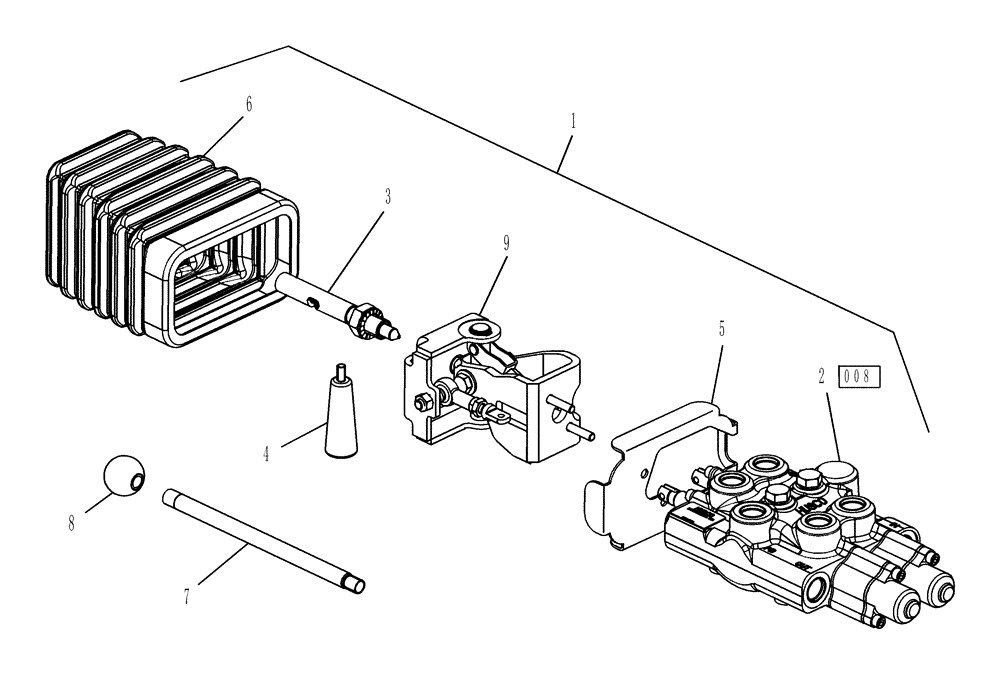

Запчасти Case IH LX330 (007) - JOYSTICK CONTROL (55) - ELECTRICAL SYSTEMS

1

87373375

JOYSTICK CONTROL KIT

1шт.

2

87585059

CONTROL VALVE

1шт.

3

87548579

LEVER

1шт.

4

87548580

LEVER

1шт.

5

87548581

PLATE

1шт.

6

87548589

BOOT

1шт.

7

87548590

HANDLE

1шт.

8

87018533

KNOB

1шт.

9

87590046

JOYSTICK

1шт.

10

84280428

CIRCLIP

CIRCLIP, HOLDS JOYSTICK LINKAGE TO THE SPOOL

1шт.

Not Illustrated

1шт.

11

84280429

PIN

PIN, HOLDS JOYSTICK LINKAGE TO THE SPOOL

1шт.

Not Illustrated

1шт.
