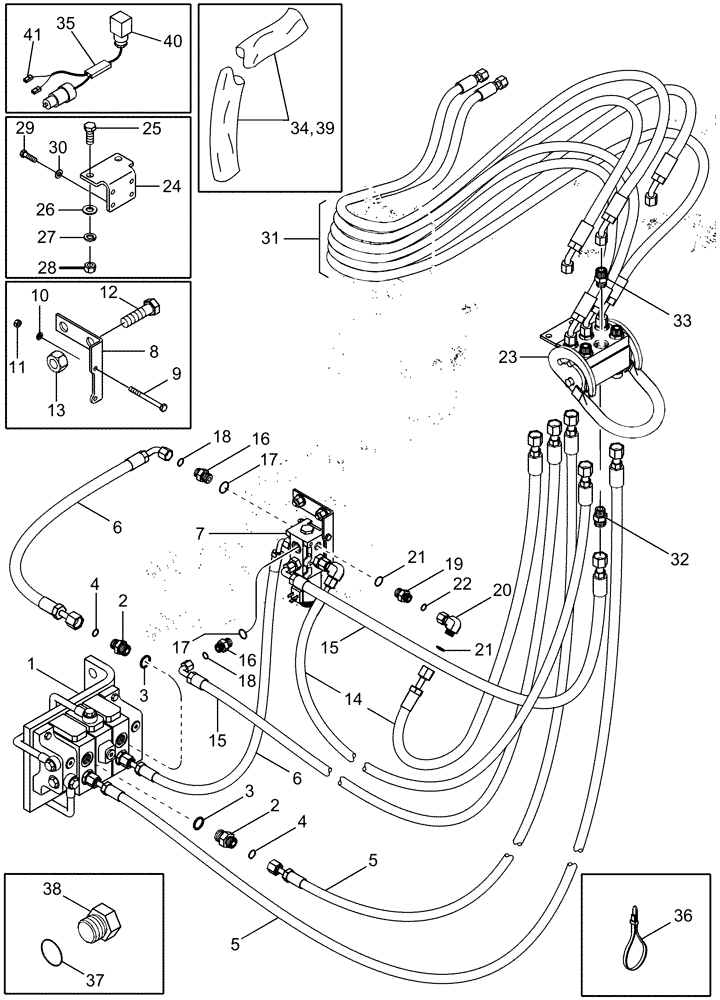

Запчасти Case IH LX252 (08-07) - HYDRAULICS - JX1U TRACTOR - MID MOUNT (3 FUNCTION ONE LEVER QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JX1U Tractor Catalog

1шт.

2

87403694

FITTING

M18 Din x 13/16 Male, Inc. 3, 4

4шт.

3

87406796

SEAL

M18 x 1.5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403677

HOSE,12.70 mm ID x 730.20 mm, SAE 100R17 Class 25

Loader Valve to Faster QC

2шт.

6

87452057

HOSE

305 mm (12 in), Loader Valve to Diverter Valve

2шт.

7

87423328

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-19

1шт.

8

87452059

BRACKET

Diverter Mounting

1шт.

9

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

2шт.

13

829-1420

NUT,M20, Cl 10

2шт.

14

87452058

HOSE

660 mm (26 in), Diverter Valve to Faster QC

2шт.

15

87403677

HOSE,12.70 mm ID x 730.20 mm, SAE 100R17 Class 25

Diverter Valve to Faster QC

2шт.

16

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 17, 18

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 21

2шт.

20

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 21, 22

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

Coupler, Faster One Lever Quick Connect

1шт.

See Figure 08-09

1шт.

24

448414A1

BRACKET

Coupler Mounting

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

26

495-11053

WASHER,1/2", SAE

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

2шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

30

892-11008

LOCK WASHER,8mm ID

4шт.

31

87403683

HOSE,12.70 mm ID x 1771.60 mm, SAE 100R17 Class 25

Faster QC to Boom

6шт.

32

447080A1

COUPLING, QUICK, FEM

Female

2шт.

33

87431657

QUICK MALE COUPLING

Male, Multifaster QC

2шт.

34

87409366

HOSE PROTECTION

2-Hose, 54 inch

1шт.

35

87345306

WIRE HARNESS

1шт.

36

1985078C2

SET OF PARTS

Color Tie Straps

1шт.

87407019

KIT

Loader Valve, Inc. 37, 38

1шт.

37

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Loader Valve

1шт.

38

220067A1

PLUG,M22 x 1.5 ORB

Loader Valve

1шт.

39

87405294

SLEEVE

4-Hose, 54 inch

1шт.

40

293256A2

RELAY,12V

1шт.

41

87420856

CONNECTOR,ELECTRIC

2шт.
