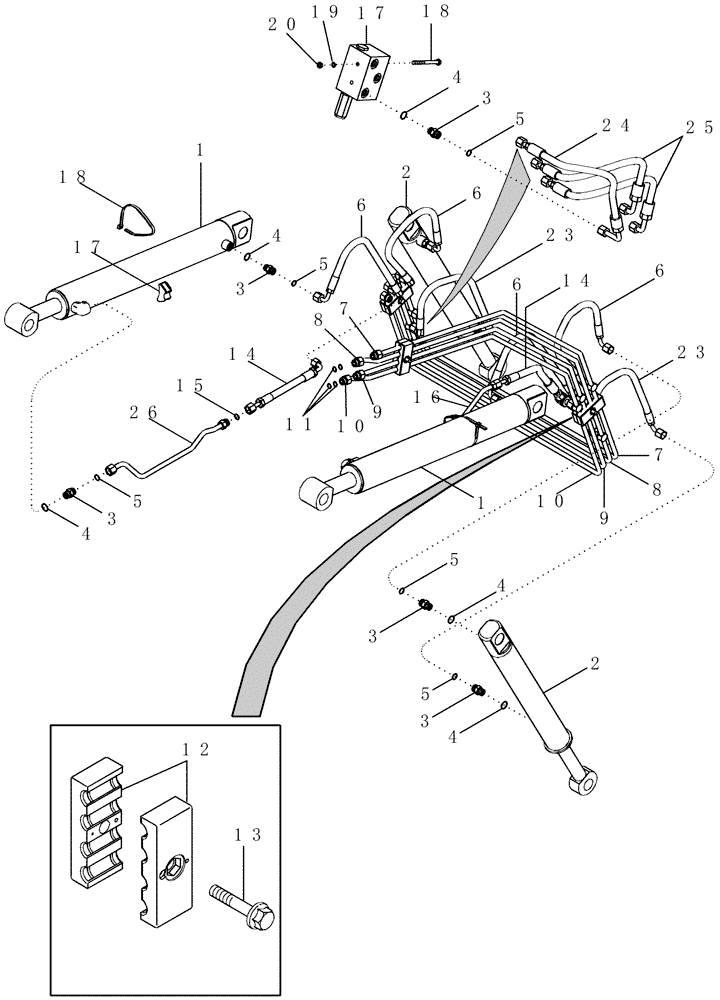

Запчасти Case IH LX252 (08-02) - HYDRAULICS - LOADER FRAME - WITH MECHANICAL SELF-LEVEL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87449054
CYLINDER ASSY.
Lift, Serial Range: -CAE0022036
2шт.
See Figure 08-12
1шт.
1
87340197
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 584.5mm Stroke
Lift, Start Serial: CAE0022036
2шт.
See Figure 08-13
1шт.
2
87452979
CYLINDER ASSY.
Bucket, Serial Range: -CAE0022036
2шт.
See Figure 08-20
1шт.
2
87340203
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 449.8mm Stroke
Bucket, Start Serial: CAE0022036
2шт.
See Figure 08-17
1шт.
3
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 4, 5, Serial Range: -CAE0022036
11шт.
3
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 4, 5, Start Serial: CAE0022036
9шт.
4
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
6
346111A1
HOSE
559 mm (22 in)
4шт.
7
87447882
HYD TUBE,0.5" OD
Bucket Cylinder, Head End, Inc. 11
1шт.
8
87447883
HYD TUBE,0.5" OD
Bucket Cylinder, Rod End, Inc. 11
1шт.
9
87447884
HYD TUBE,0.5" OD
Lift Cylinder, Rod End, Inc. 11
1шт.
10
87446136
HYD TUBE,0.5" OD
Lift Cylinder, Head End, Inc. 11
1шт.
12
324067A1
BRACKET
6шт.
13
281-54932
SCREW,Hex Wshr Hd, 3/8" - 16 x 2"
3шт.
14
87444341
HOSE
Lift Cylinder, Inc. 15
2шт.
16
87444340
TUBE,0.5" OD
Lift Cylinder
1шт.
17
86988707
VALVE PRESSURE RELIE
1шт.
See Figure 08-16
1шт.
18
413-452
BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5
2шт.
19
492-11025
LOCK WASHER,1/4"
2шт.
20
425-104
NUT,1/4"-20, Cl 5
2шт.
21
D38648
BLOCK
Tube Support
2шт.
22
386170C1
CABLE TIE,.30" x 27 1/2"
CABLE STRAP
2шт.
23
87405450
HOSE ASSY.
711 mm (28 in)
2шт.
24
87405390
HOSE ASSY.
508 mm (20 in)
1шт.
25
87405388
HOSE ASSY.
432 mm (17 in)
2шт.
26
87444340
TUBE,0.5" OD
Lift Cylinder
1шт.
Выбрано товаров: 34
