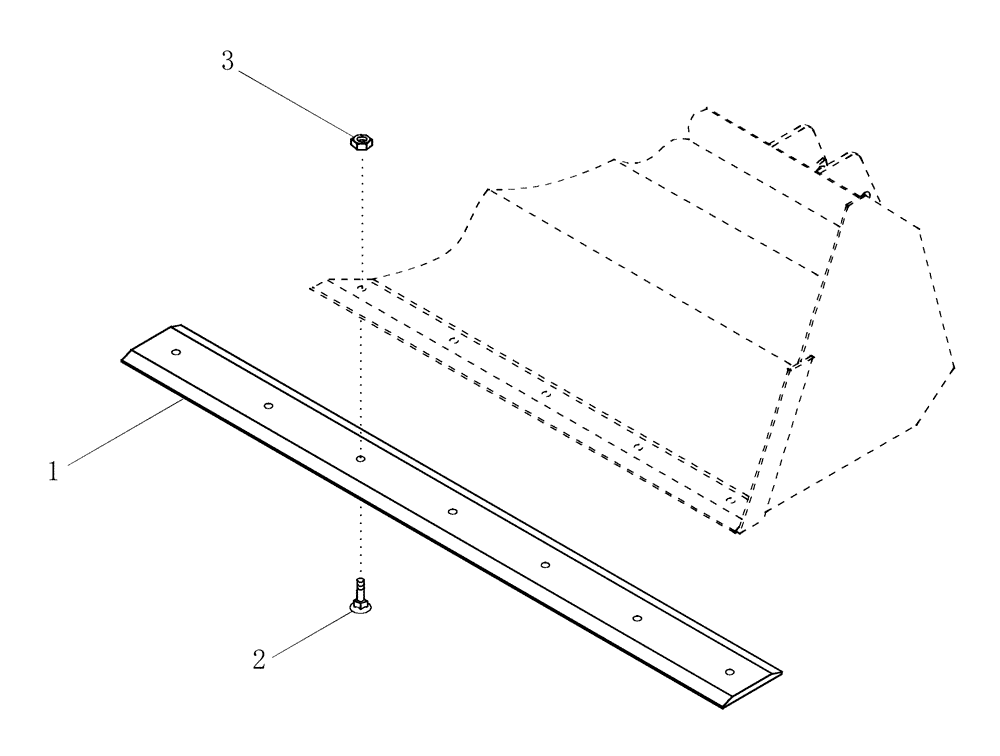

Запчасти Case IH LX252 (09-12) - CUTTING EDGE - MATERIAL BUCKET (09) - CHASSIS/ATTACHMENTS

1

323002A1

EDGE, CUTTING

72 in.

1шт.

2

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

72 in Cutting Edge

9шт.

3

429-1012

NUT,3/4"-10, G8

72 in Cutting Edge

9шт.

1

87347410

CUTTING EDGE

78 in, 10 Mounting Holes, 203 mm (8 in) Spacing

1шт.

2

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

78 in Cutting Edge

10шт.

3

429-1012

NUT,3/4"-10, G8

78 in Cutting Edge

10шт.

1

323003A1

EDGE, CUTTING

84 in

1шт.

2

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

84 in Cutting Edge

11шт.

3

429-1012

NUT,3/4"-10, G8

84 in Cutting Edge

11шт.
